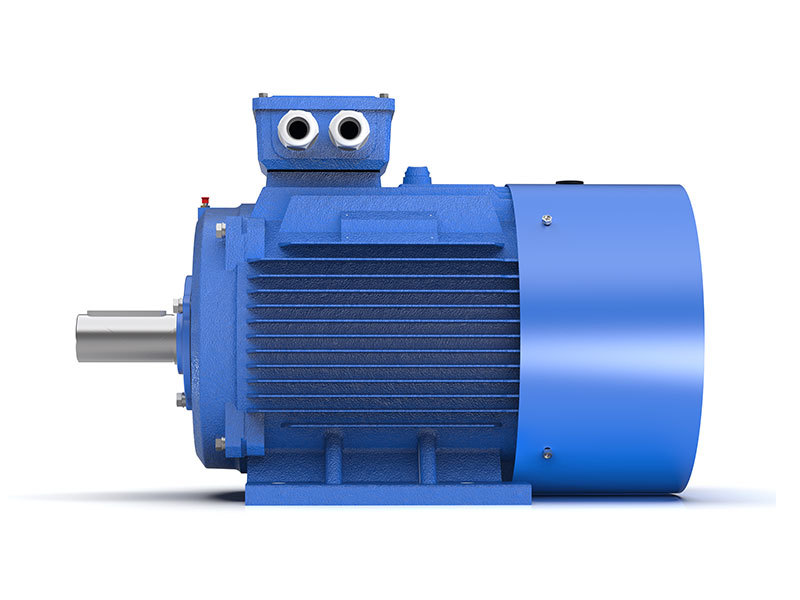

Y3 series three-phase asynchronous motors
Y3 series three-phase asynchronous motors
Y3 series three-phase asynchronous motors
Y3 series three-phase asynchronous motors
+
  • Y3 series three-phase asynchronous motors
  • Y3 series three-phase asynchronous motors
  • Y3 series three-phase asynchronous motors
  • Y3 series three-phase asynchronous motors

Y3 series three-phase asynchronous motors

An electric motor (Motor) is a device that converts electrical energy into mechanical energy.

Categories:

IE1 SERIES

E-mail: guanglu@guanglu.com

Phone: +86 0576-86389888

Keys:Motor,IE Series,Guanglu

Get A Quote
Also Like

Detail display

An electric motor (Motor) is a device that converts electrical energy into mechanical energy. It uses an energized coil (also known as a stator winding) to generate a rotating magnetic field and acts on a rotor (such as a squirrel cage closed aluminum frame) to form a magneto-electric power rotating torque. Electric motors are divided into DC motors and AC motors according to the use of different power sources, most of the electric motors in the power system are AC motors, which can be synchronous motors or asynchronous motors (motor stator magnetic field speed and rotor rotational speed does not maintain synchronous speed). The motor consists of a stator and a rotor, and the direction of the force on the energized wire in the magnetic field is related to the direction of the current and the direction of the magnetic inductance (direction of the magnetic field). The working principle of the motor is that the magnetic field acts on the current force to make the motor rotate.

  • Technical parameter
  • Installation method
  • Bearing Rules
  • Junction Box
    • Commodity name: Y3 series three-phase asynchronous motors
      Franme
    reference
    and size    		 Full load current
    at rated voltage    		 Rated
    power    		 Full load sreed
    in revolutions
    per minute    		 Efficiency Power
    factor    		 Direct on
    ine
    starting
    torque
    ratio    		 Diect on
    line
    starting
    current
    ratio    		 Direct on
    line
    pull out
    torque
    ratio    		 Sound power
    level @1m
    on no load    		 Weight Rotor
    inertia
    WK2
    NO Type Amps(A) Power Speed EFF. P.F. LRT LRA BDT Noise Weight J
    380V 400V 415V kW HP r/min % Cos RLT RLA RLT LwA dB(A) kg kg.m2*103
    1 Y3-80M1-2 1.77 1.74 1.68 0.8 1 2840 75.0 0.83 2.2 6.1 2.3 67 16 0.75
    2 Y3-80M2-2 2.61 2.48 2.39 1.1 1.5 2840 76.2 0.84 2.2 6.9 2.3 67 17 0.9
    3 Y3-90S-2 3.46 3.28 3.16 1.5 2 2850 78.5 0.84 2.2 7.0 2.3 72 20 1.2
    4 Y3-90L-2 4.85 4.61 4.45 2.2 3 2855 81.0 0.85 2.2 7.0 2.3 72 23 1.4
    5 Y3-100L-2 6.34 6.03 5.81 3 4 2860 82.6 0.87 2.2 7.5 2.3 76 30 2.9
    6 Y3-112M-2 8.2 7.79 7.51 4 5.5 2880 84.2 0.88 2.2 7.5 2.3 77 41 5.5
    7 Y3-132S1-2 11.1 10.53 10.15 5.5 7.5 2900 85.7 0.88 2.2 7.5 2.3 80 57.5 10.9
    8 Y3-132S2-2 14.9 14.1 13.6 7.5 10 2900 87.0 0.88 2.2 7.5 2.3 80 60.5 12.6
    9 Y3-160M1-2 21.2 20.2 19.5 11 15 2930 88.4 0.89 2.2 7.5 2.3 86 107 37.7
    10 Y3-160M2-2 28.6 27.2 26.2 15 20 2930 89.4 0.89 2.2 7.5 2.3 86 104 49.9
    11 Y3-160L-2 34.7 33.0 31.8 18.5 25 2930 90.0 0.90 2.2 7.5 2.3 86 133 55
    12 Y3-180M-2 41 39.0 37.6 22 30 2940 90.5 0.90 2.0 7.5 2.3 89 156 75
    13 Y3-200L1-2 55.4 52.6 50.7 30 40 2950 91.4 0.90 2.0 7.5 2.3 92 218 124
    14 Y3-200L2-2 67.9 64.5 62.2 38 50 2950 92.0 0.90 2.0 7.5 2.3 92 230 139
    15 Y3-225M-2 82.1 78.0 75.2 45 60 2960 92.5 0.90 2.0 7.5 2.3 92 290 233
    16 Y3-250M-2 100 94.8 91.4 55 75 2970 93.0 0.90 2.0 7.5 2.3 93 359 312
    17 Y3-280S-2 135 129 124 75 100 2975 93.6 0.90 2.0 7.0 2.3 94 494 579
    18 Y3-280M-2 160 152 147 90 125 2975 93.9 0.91 2.0 7.1 2.3 94 510 675
    19 Y3-315S-2 195 186 179 110 150 2975 94.0 0.91 1.8 7.1 2.2 96 875 1180
    20 Y3-315M-2 233 222 214 132 180 2975 94.5 0.91 1.8 7.1 2.2 96 963 1820
    21 Y3-315L1-2 279 265 256 160 220 2975 94.6 0.92 1.8 7.1 2.2 99 1010 2080
    22 Y3-315L2-2 348 331 319 200 270 2975 94.8 0.92 1.8 7.1 2.2 99 1138 2380
    23 Y3-355M-2 433 412 397 250 340 2980 95.2 0.92 1.6 7.1 2.2 103 1685 3000
    24 Y3-355L-2 545 518 499 315 430 2980 95.4 0.92 1.6 7.1 2.2 103 1855 3500



      Franme
    reference
    and size    		 Full load current
    at rated voltage    		 Rated
    power    		 Full load sreed
    in revolutions
    per minute    		 Efficiency Power
    factor    		 Direct on
    ine
    starting
    torque
    ratio    		 Diect on
    line
    starting
    current
    ratio    		 Direct on
    line
    pull out
    torque
    ratio    		 Sound power
    level @1m
    on no load    		 Weight Rotor
    inertia
    WK2
    NO Type Amps(A) Power Speed EFF. P.F. LRT LRA BDT Noise Weight J
    380V 400V 415V kW HP r/min % Cos RLT RLA RLT LwA dB(A) kg kg.m2*103
    1 Y3-80M1-4 1.57 1.49 1.44 0.55 0.75 1390 71 0.75 2.4 5.2 2.3 58 15 1.8
    2 Y3-80M2-4 2.05 1.95 1.88 0.8 1 1390 73 0.76 2.3 6.0 2.3 58 15.5 2.1
    3 Y3-90S-4 2.85 2.71 2.61 1.1 1.5 1390 76.2 0.77 2.3 6.0 2.3 61 19 2.3
    4 Y3-90L-4 3.72 3.54 3.41 1.5 2 1400 78.5 0.78 2.3 6.0 2.3 61 23 2.7
    5 Y3-100L1-4 5.09 4.90 4.72 2.2 3 1420 81 0.81 2.3 7.0 2.3 64 29 5.4
    6 Y3-100L2-4 6.78 6.39 6.16 3 4 1420 82.6 0.82 2.3 7.0 2.3 64 31 6.7
    7 Y3-112M-4 8.8 8.36 8.06 4 5.5 1435 84.2 0.82 2.3 7.0 2.3 65 42 9.5
    8 Y3-132S-4 11.7 11.2 10.8 5.5 7.5 1440 85.7 0.83 2.3 7.0 2.3 71 52 21.4
    9 Y3-132M-4 15.6 14.8 14.3 7.5 10 1450 87 0.84 2.3 7.0 2.3 71 64.5 29.6
    10 Y3-160M-4 22.5 21.4 20.6 11 15 1460 88.4 0.84 2.2 7.0 2.3 75 100 74.7
    11 Y3-160L-4 30 28.5 27.5 15 20 1460 89.4 0.85 2.2 7.5 2.3 75 129 91.8
    12 Y3-180M-4 36.3 34.5 33.3 18.5 25 1470 90 0.86 2.2 7.5 2.3 76 150 139
    13 Y3-180L-4 43.2 40.8 39.3 22 30 1470 90.5 0.86 2.2 7.5 2.3 76 166 158
    14 Y3-200L-4 57.6 55.1 53.1 30 40 1470 91.4 0.86 2.2 7.2 2.3 79 228 262.
    15 Y3-225S-4 70.2 66.7 64.3 38 50 1475 92 0.87 2.2 7.2 2.3 81 268 406
    16 Y3-225M-4 84.9 80.7 77.8 45 60 1475 92.5 0.87 2.2 7.2 2.3 81 313 469
    17 Y3-250M-4 103 98.1 94.6 55 75 1480 93 0.87 2.2 7.2 2.3 83 366 660
    18 Y3-280S-4 138.3 131 127 75 100 1480 93.6 0.88 2.2 6.8 2.3 86 480 1120
    19 Y3-280M-4 165 157 152 90 125 1480 93.9 0.88 2.2 6.8 2.3 86 560 1640
    20 Y3-315S-4 201 191 184 110 150 1480 94.5 0.88 2.1 6.9 2.2 93 846 3100
    21 Y3-315M-4 240 228 220 132 180 1480 94.8 0.88 2.1 6.9 2.2 93 940 3620
    22 Y3-315L1-4 288 273 264 160 220 1480 94.9 0.89 2.1 6.9 2.2 97 1044 4130
    23 Y3-315L2-4 360 342 329 200 270 1480 94.9 0.89 2.1 6.9 2.2 97 1162 4730
    24 Y3-355M-4 443 421 406 250 340 1490 95.2 0.90 2.1 6.9 2.2 101 1650 6500
    25 Y3-355L-4 559 531 511 315 430 1490 95.2 0.90 2.1 6.9 2.2 101 1810 8200



      Franme
    reference
    and size    		 Full load current
    at rated voltage    		 Rated
    power    		 Full load sreed
    in revolutions
    per minute    		 Efficiency Power
    factor    		 Direct on
    ine
    starting
    torque
    ratio    		 Diect on
    line
    starting
    current
    ratio    		 Direct on
    line
    pull out
    torque
    ratio    		 Sound power
    level @1m
    on no load    		 Weight Rotor
    inertia
    WK2
    NO Type Amps(A) Power Speed EFF. P.F. LRT LRA BDT Noise Weight J
    380V 400V 415V kW HP r/min % Cos RLT RLA RLT LwA dB(A) kg kg.m2*103
    1 Y3-80M1-6 1.3 1.23 1.19 0.37 0.5 880 62 0.70 1.9 4.7 2.0 54 15 1.6
    2 Y3-80M2-6 1.8 1.70 1.64 0.55 0.75 880 65 0.72 1.9 4.7 2.1 54 16 1.9
    3 Y3-90S-6 2.29 2.18 2.10 0.8 1 905 69 0.72 2.0 5.3 2.1 57 20 2.9
    4 Y3-90L-6 3.18 3.02 2.91 1.1 1.5 905 72 0.73 2.0 5.5 2.1 57 23 3.5
    5 Y3-100L-6 4 3.80 3.66 1.5 2 920 76 0.75 2.0 5.5 2.1 61 29 6.9
    6 Y3-112M-6 5.6 5.29 5.10 2.2 3 935 79 0.76 2.0 6.5 2.1 65 41 14
    7 Y3-132S-6 7.4 7.03 6.78 3 4 960 81 0.76 2.1 6.5 2.1 69 59 28.6
    8 Y3-132M1-6 9.75 9.26 8.93 4 5.5 960 82 0.76 2.1 6.5 2.1 69 66 35.7
    9 Y3-132M2-6 12.9 12.3 11.8 5.5 7.5 960 84 0.77 2.1 6.5 2.1 69 76.5 44.9
    10 Y3-160M-6 17.2 16.3 15.8 7.5 10 970 86 0.77 2.0 6.5 2.1 73 106 81
    11 Y3-160L-6 24.5 23.3 22.4 11 15 970 87.5 0.78 2.0 6.5 2.1 73 122 116
    12 Y3-180L-6 31.6 30.0 28.9 15 20 970 89 0.81 2.0 7.0 2.1 73 154 207
    13 Y3-200L1-6 38.6 36.6 35.3 18.5 25 980 90 0.81 2.1 7 2.1 76 202 315
    14 Y3-200L2-6 44.7 42.5 41.0 22 30 980 90 0.83 2.0 7 2.1 76 216 360
    15 Y3-225M-6 59.3 56.3 54.3 30 40 980 91.5 0.84 2.0 7 2.1 76 287 547
    16 Y3-250M-6 71 67.5 65.1 38 50 980 92 0.86 2.1 7 2.1 78 355 843
    17 Y3-280S-6 86 81.7 78.1 45 60 980 92.5 0.86 2.1 7 2 80 444 1390
    18 Y3-280M-6 104 99.5 95.9 55 75 980 92.8 0.86 2.1 7 2 80 498 1650
    19 Y3-315S-6 142 135 130 75 100 985 93.5 0.86 2.0 6.7 2 85 859 4110
    20 Y3-315M-6 169 161 155 90 125 985 93.8 0.86 2.0 6.7 2 85 950 4780
    21 Y3-315L1-6 207 196 189 110 150 985 94 0.86 2.0 6.7 2 85 1031 5450
    22 Y3-315L2-6 245 232 224 132 180 985 94.2 0.87 2.0 6.7 2 85 1107 6120
    23 Y3-355M1-6 292 278 268 160 220 990 94.5 0.88 1.9 6.7 2 92 1550 9500
    24 Y3-355M2-6 365 347 335 200 270 990 94.5 0.88 1.9 6.7 2 92 1645 10400
    25 Y3-355L-6 457 434 418 250 340 990 94.5 0.88 1.9 6.7 2 92 1854 12400



      Franme
    reference
    and size    		 Full load current
    at rated voltage    		 Rated
    power    		 Full load sreed
    in revolutions
    per minute    		 Efficiency Power
    factor    		 Direct on
    ine
    starting
    torque
    ratio    		 Diect on
    line
    starting
    current
    ratio    		 Direct on
    line
    pull out
    torque
    ratio    		 Sound power
    level @1m
    on no load    		 Weight Rotor
    inertia
    WK2
    NO Type Amps(A) Power Speed EFF. P.F. LRT LRA BDT Noise Weight J
    380V 400V 415V kW HP r/min % Cos RLT RLA RLT LwA dB(A) kg kg.m2*103
    1 Y3-80M1-8 0.88 0.84 0.80 0.18 0.25 645 51 0.61 1.8 3.3 1.9 52 15 2.5
    2 Y3-80M2-8 1.15 1.10 1.06 0.25 0.34 645 54 0.61 1.8 3.3 1.9 52 16 3.0
    3 Y3-90S-8 1.49 1.41 1.36 0.37 0.5 675 62 0.61 1.8 4 1.9 56 20 5.1
    4 Y3-90L-8 2.17 2.07 1.99 0.55 0.75 680 63 0.61 1.8 4 2 56 23 6.5
    5 Y3-100L1-8 2.43 2.31 2.22 0.8 1 680 70 0.67 1.8 4 2 59 29 9.0
    6 Y3-100L2-8 3.36 3.20 3.08 1.1 1.5 680 72 0.69 1.8 5 2 59 31 11.0
    7 Y3-112M-8 4.4 4.18 4.03 1.5 2 690 74 0.70 1.8 5 2 61 41 24.5
    8 Y3-132S-8 6.0 5.66 5.46 2.2 3 710 79 0.71 1.8 6 2 64 61 31.4
    9 Y3-132M-8 7.8 7.41 7.15 3 4 710 80 0.73 1.8 6 2 64 74 39.5
    10 Y3-160M1-8 10.3 9.76 9.41 4 5.5 720 81 0.73 1.9 6 2 68 95.5 75.3
    11 Y3-160M2-8 13.6 12.9 12.5 5.5 7.5 720 83 0.74 1.9 6 2 68 107 93.1
    12 Y3-160L-8 17.8 16.9 16.3 7.5 10 720 85.5 0.75 1.9 6 2 68 128 126
    13 Y3-180L-8 25.5 24.2 23.3 11 15 730 87.5 0.75 2 6.5 2 70 169 203
    14 Y3-200L-8 34.1 32.4 31.2 15 20 730 88 0.76 2 6.6 2 73 236 339
    15 Y3-225S-8 41.1 39.0 37.6 18.5 25 730 90 0.76 1.9 6.6 2 73 274 491
    16 Y3-225M-8 48.9 45.0 43.4 22 30 730 90.5 0.78 1.9 6.6 2 73 290 547
    17 Y3-250M-8 63 60.2 58.1 30 40 735 91 0.79 1.9 6.5 2 75 370 834
    18 Y3-280S-8 78 73.9 71.2 38 50 740 91.5 0.79 1.9 6.6 2 76 488 1650
    19 Y3-280M-8 94 89.4 86.1 45 60 740 92 0.79 1.9 6.6 2 76 563 1930
    20 Y3-315S-8 111 106 102 55 75 735 92.8 0.81 1.8 6.6 2 82 748 4790
    21 Y3-315M-8 150 143 138 75 100 735 93.5 0.81 1.8 6.2 2 82 854 5580
    22 Y3-315L1-8 178 169 163 90 125 735 93.8 0.82 1.8 6.4 2 82 970 6370
    23 Y3-315L2-8 217 206 199 110 150 735 94 0.82 1.8 6.4 2 82 1075 7230
    24 Y3-355M1-8 261 248 239 132 180 740 93.7 0.82 1.8 6.4 2 90 1575 7900
    25 Y3-355M2-8 315 299 288 160 220 740 94.2 0.82 1.8 6.4 2 90 1658 10300
    26 Y3-355L-8 387 368 355 200 270 740 94.5 0.83 1.8 6.4 2 90 1834 12300



      Franme
    reference
    and size    		 Full load current
    at rated voltage    		 Rated
    power    		 Full load sreed
    in revolutions
    per minute    		 Efficiency Power
    factor    		 Direct on
    ine
    starting
    torque
    ratio    		 Diect on
    line
    starting
    current
    ratio    		 Direct on
    line
    pull out
    torque
    ratio    		 Sound power
    level @1m
    on no load    		 Rotor
    inertia
    WK2
    NO. Type Amps(A) Power Speed EFF. P.F. LRT LRA BDT Noise J
    380V 400V 415V kW HP r/min % Cos RLT RLA RLT LwA dB(A) kg.m2*103
    1 Y3-100L1-10 1.33 1.26 1.22 0.25 0.34 530 55.0 0.52 1.2 3.2 1.7 59 5.7
    2 Y3-100L2-10 1.89 1.80 1.73 0.37 0.5 530 56.0 0.53 1.2 3.2 1.7 59 7.3
    3 Y3-112M1-10 2.50 2.37 2.29 0.55 0.75 540 62.0 0.54 1.2 3.4 1.7 61 10.1
    4 Y3-112M2-10 3.30 3.12 3.01 0.8 1 540 63.0 0.55 1.2 3.4 1.7 61 12.3
    5 Y3-132S-10 4.40 4.20 4.00 1.1 1.5 550 69.0 0.55 1.2 3.6 1.7 64 27.4
    6 Y3-132M-10 5.70 5.50 5.20 1.5 2 565 71.0 0.56 1.2 3.6 1.7 64 35.1
    7 Y3-160M1-10 7.7 7.3 7.1 2.2 3 575 76.0 0.57 1.3 4.0 1.8 68 44.2
    8 Y3-160M2-10 10.2 9.7 9.4 3 4 575 77.0 0.58 1.3 4.0 1.8 68 84.2
    9 Y3-180M-10 12.2 11.5 11.1 4 5.5 580 82.0 0.61 1.3 4.0 1.8 70 104.1
    10 Y3-180L-10 16.2 15.4 14.9 5.5 7.5 580 83.0 0.62 1.3 4.0 1.8 70 140.9
    11 Y3-200L1-10 20.6 19.5 18.8 7.5 10 580 84.0 0.66 1.3 4.5 1.8 73 227
    12 Y3-200L2-10 30.0 28.5 27.5 11 15 580 84.5 0.66 1.3 4.5 1.8 73 379
    13 Y3-225M1-10 39.2 37.2 35.9 15 20 580 85.5 0.68 1.3 4.5 1.8 73 548.9
    14 Y3-250M2-10 48.1 45.7 44.1 18.5 25 580 86.0 0.68 1.3 4.5 1.8 73 611.5
    15 Y3-280S-10 49.9 47.4 45.7 22 30 585 90.5 0.74 1.5 5.2 2.0 76 932.4
    16 Y3-280M1-10 67.7 64.3 62.0 30 40 585 91.0 0.74 1.5 5.2 2.0 76 1844.7
    17 Y3-280M2-10 83.5 79.3 76.5 38 50 585 91.0 0.74 1.5 5.2 2.0 76 2157.7
    18 Y3-315S-10 100 95 91 45 60 590 91.5 0.75 1.5 6.2 2.0 82 5355.2
    19 Y3-315M-10 121 115 111 55 75 590 92.0 0.75 1.5 6.2 2.0 82 6238.4
    20 Y3-315L1-10 162 154 148 75 100 590 92.5 0.76 1.5 5.8 2.0 82 7121.7
    21 Y3-315L2-10 191 181 175 90 125 590 93.0 0.77 1.5 5.9 2.0 82 8083.1
    22 Y3-355M1-10 230 218 211 110 150 590 93.2 0.78 1.5 6.0 2.0 90 10176
    23 Y3-355M2-10 275 261 252 132 180 590 93.5 0.78 1.5 6.0 2.0 90 11515.4
    24 Y3-355L-10 334 317 305 160 220 590 93.5 0.78 1.5 6.0 2.0 90 13751.4



      Franme
    reference
    and size    		 Full load current
    at rated voltage    		 Rated
    power    		 Full load sreed
    in revolutions
    per minute    		 Efficiency Power
    factor    		 Direct on
    ine
    starting
    torque
    ratio    		 Diect on
    line
    starting
    current
    ratio    		 Direct on
    line
    pull out
    torque
    ratio    		 Sound power
    level @1m
    on no load    		 Rotor
    inertia
    WK2
    NO. Type Amps(A) Power Speed EFF. P.F. LRT LRA BDT Noise J
    380V 400V 415V kW HP r/min % Cos RLT RLA RLT LwA dB(A) kg.m2*103
    1 Y3-100L1-12 1.55 1.47 1.42 0.25 0.34 420 50.0 0.49 1.1 2.8 1.7 59 7.4
    2 Y3-100L2-12 2.21 2.10 2.02 0.37 0.5 425 52.0 0.49 1.1 2.8 1.7 59 10.3
    3 Y3-112M1-12 3.01 2.84 2.74 0.55 0.75 435 57.0 0.49 1.1 3.2 1.7 61 12.6
    4 Y3-132S1-12 3.60 3.40 3.30 0.8 1 440 63.0 0.50 1.1 3.4 1.7 61 28
    5 Y3-132S2-12 5.10 4.90 4.70 1.1 1.5 450 65.0 0.50 1.1 3.4 1.7 64 35.9
    6 Y3-132M-12 6.70 6.30 6.10 1.5 2 460 68.0 0.50 1.1 3.5 1.7 64 45.2
    7 Y3-160M-12 9.0 8.5 8.2 2.2 3 465 74.0 0.50 1.1 4.0 1.8 68 86.1
    8 Y3-160L-12 12.2 11.6 11.2 3 4 470 74.5 0.50 1.1 4.0 1.8 68 106.5
    9 Y3-180L1-12 14.1 13.4 12.9 4 5.5 470 78.0 0.55 1.2 4.0 1.8 70 144.1
    10 Y3-180L2-12 18.5 17.6 16.9 5.5 7.5 475 79.0 0.57 1.2 4.0 1.8 70 232.2
    11 Y3-200L1-12 24.2 23.0 22.2 7.5 10 475 81.0 0.58 1.2 4.5 1.8 73 387.7
    12 Y3-225M1-12 33.1 31.5 30.3 11 15 480 84.0 0.60 1.2 4.5 1.8 73 561.6
    13 Y3-225M2-12 44.7 42.4 40.9 15 20 480 85.0 0.60 1.2 4.5 1.8 73 625.6
    14 Y3-250M-12 53.0 50.3 48.5 18.5 25 480 85.5 0.62 1.2 4.5 1.8 73 953.9
    15 Y3-280S-12 60.0 57.0 55.0 22 30 485 87.0 0.64 1.2 4.5 1.8 76 1887.1
    16 Y3-280M-12 80.1 76.1 73.3 30 40 485 87.5 0.65 1.2 4.5 1.8 76 2207.4
    17 Y3-315S-12 93.2 88.5 85.3 38 50 485 90.0 0.67 1.2 4.5 1.5 76 5478.4
    18 Y3-315M-12 112.8 107.1 103.2 45 60 485 90.5 0.67 1.2 4.5 1.5 82 6381.9
    19 Y3-315L1-12 137.3 130.5 125.8 55 75 485 90.8 0.67 1.2 4.5 1.5 82 7285.5
    20 Y3-315L2-12 186.9 177.6 171.1 75 100 485 91.0 0.67 1.2 4.5 1.5 82 8269.1
    21 Y3-355M1-12 212.3 201.7 194.4 90 125 490 92.0 0.70 1.2 4.5 1.7 82 10410
    22 Y3-355M2-12 258.4 245.4 236.6 110 150 490 92.4 0.70 1.2 4.5 1.7 90 11780.3
    23 Y3-355L-12 309.4 293.9 283.3 132 180 490 92.6 0.70 1.2 4.5 1.7 90 14067.7



      Franme
    reference
    and size    		 Full load current
    at rated voltage    		 Rated
    power    		 Full load sreed
    in revolutions
    per minute    		 Efficiency Power
    factor    		 Direct on
    ine
    starting
    torque
    ratio    		 Diect on
    line
    starting
    current
    ratio    		 Direct on
    line
    pull out
    torque
    ratio    		 Sound power
    level @1m
    on no load    		 Rotor
    inertia
    WK2
    NO. Type Amps(A) Power Speed EFF. P.F. LRT LRA BDT Noise J
    380V 400V 415V kW HP r/min % Cos RLT RLA RLT LwA dB(A) kg.m2*103
    1 Y3-112M1-16 1.52 1.44 1.39 0.25 0.34 310 48.0 0.47 0.9 2.5 1.6 61 28.5
    2 Y3-112M2-16 2.34 2.22 2.14 0.37 0.5 315 48.5 0.47 0.9 2.5 1.6 64 36.6
    3 Y3-132M-16 3.2 3.0 2.9 0.55 0.75 330 54.0 0.48 0.9 2.7 1.6 64 46
    4 Y3-160M1-16 3.8 3.6 3.4 0.8 1 340 62.0 0.48 0.9 2.8 1.6 68 87.7
    5 Y3-160M2-16 5.4 5.1 4.9 1.1 1.5 345 64.0 0.48 0.9 2.8 1.6 68 108.4
    6 Y3-160L-16 7.1 6.7 8.5 1.5 2 345 66.0 0.48 0.9 2.8 1.6 70 146.7
    7 Y3-180M-16 9.4 8.9 8.6 2.2 3 350 71.5 0.49 0.9 3.2 1.6 70 0.2364
    8 Y3-180L-16 12.8 12.1 11.7 3 4 355 72.0 0.49 0.9 3.2 1.6 73 394.8
    9 Y3-200L1-16 16.4 15.6 15.0 4 5.5 355 74.0 0.50 0.9 3.2 1.6 73 571.8
    10 Y3-200L2-16 22.1 21.0 20.2 5.5 7.5 355 75.0 0.50 0.9 3.2 1.6 73 637
    11 Y3-225S-16 28.4 26.9 26.0 7.5 10 360 78.0 0.51 0.9 3.5 1.6 73 971.2
    12 Y3-250M-16 39.4 37.4 35.7 11 15 360 80.0 0.53 0.9 3.5 1.6 76 1921.5
    13 Y3-280M-16 49.8 47.3 45.6 15 20 360 82.0 0.55 1.0 3.5 1.6 76 2247.5
    14 Y3-315S-16 57.6 54.7 52.7 18.5 25 365 86.0 0.56 1.0 3.5 1.6 76 5578.1
    15 Y3-315M-16 68.1 64.6 62.3 22 30 365 87.0 0.56 1.0 3.5 1.6 82 6498.1
    16 Y3-315L1-16 91.7 87.1 83.9 30 40 365 88.0 0.56 1.0 3.5 1.6 82 7418.1
    17 Y3-315L2-16 112 106 102 38 50 365 88.0 0.56 1.0 3.5 1.6 82 8419.5

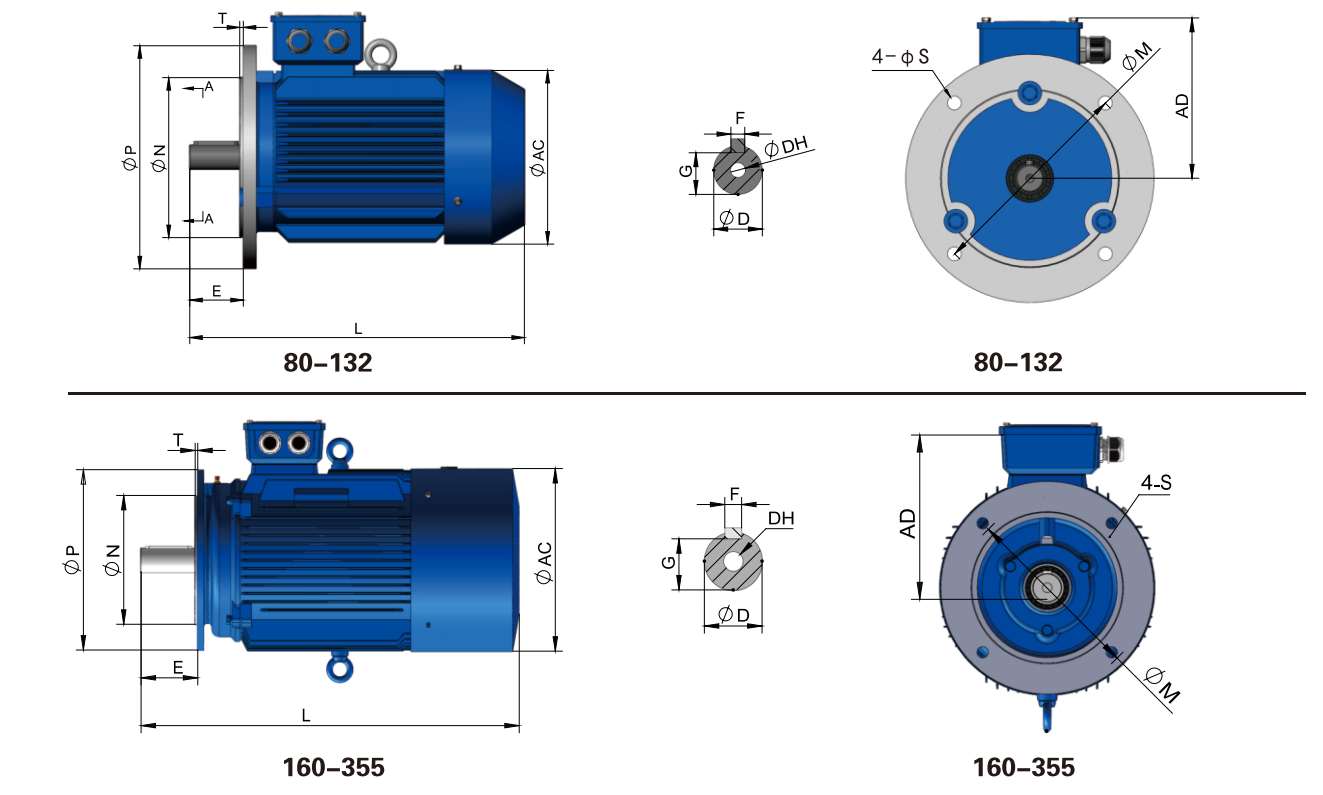

  • FRAME WITHOUT FEETAND END-SHIELD WITH FLANGE(IM B5)

    FRAME
    SIZE    		 POLES A A/2 B C D E F G H K AB AC AD HD L DH*
    80M 2 4 6 8 125 62.5 100 50 19 40 6 15.5 80 10 165 155 145 220 295 M6X16
    90S 2 4 6 8 140 70 100 56 24 50 8 20 90 10 180 175 155 250 320 M8X19
    90L 2 4 6 8 140 70 125 56 24 50 8 20 90 10 180 175 155 250 345 M8X19
    100L 2 4 6 8 160 80 140 63 28 60 8 24 100 12 205 196 180 270 385 M10X22
    112M 2 4 6 8 190 95 140 70 28 60 8 24 112 12 230 220 190 300 400 M10X22
    132S 2 4 6 8 216 108 140 89 38 80 10 33 132 12 270 259 210 345 470 M12X28
    132M 2 4 6 8 216 108 178 89 38 80 10 33 132 12 270 259 210 345 510 M12X28
    160M 2 4 6 8 254 127 210 108 42 110 12 37 160 15 320 315 255 420 615 M16X36
    160L 2 4 6 8 254 127 254 108 42 110 12 37 160 15 320 315 255 420 660 M16X36
    180M 2 4 6 8 279 139.5 241 121 48 110 14 42.5 180 15 355 355 280 455 700 M16X36
    180L 2 4 6 8 279 139.5 279 121 48 110 14 42.5 180 15 355 355 280 455 740 M16X36
    200L 2 4 6 8 318 159 305 133 55 110 16 49 200 19 395 397 305 505 770 M20X42
    225S 4 8 356 178 286 149 60 140 18 53 225 19 435 445 335 560 815 M20X42
    225M 2 356 178 311 149 55 110 16 49 225 19 435 445 335 560 820 M20X42
      4 6 8 356 178 311 149 60 140 18 53 225 19 435 445 335 560 845 M20X42
    250M 2 406 203 349 168 60 140 18 53 250 24 490 485 370 615 920 M20X42
      4 6 8 406 203 349 168 65 140 18 58 250 24 490 485 370 615 920 M20X42
    280S 2 457 228.5 368 190 65 140 18 58 280 24 550 547 410 680 995 M20X42
      4 6 8 457 228.5 368 190 75 140 20 67.5 280 24 550 547 410 680 995 M20X42
    280M 2 457 228.5 419 190 65 140 18 58 280 24 550 547 410 680 1045 M20X42
      4 6 8 457 228.5 419 190 75 140 20 67.5 280 24 550 547 410 680 1045 M20X42
    315S 2 508 254 406 216 65 140 18 58 315 28 635 620 530 845 1185 M20X42
      4 6 8 10 508 254 406 216 80 170 22 71 315 28 635 620 530 845 1220 M20X42
    315M 2 508 254 457 216 65 140 18 58 315 28 635 620 530 845 1290 M20X42
      4 6 8 10 508 254 457 216 80 170 22 71 315 28 635 620 530 845 1325 M20X42
    315L 2 508 254 508 216 65 140 18 58 315 28 635 620 530 845 1290 M20X42
      4 6 8 10 508 254 508 216 80 170 22 71 315 28 635 620 530 845 1325 M20X42
    355M 2 610 305 560 254 75 140 20 67.5 355 28 730 698 655 1010 1500 M20X42
      4 6 8 10 610 305 560 254 95 170 25 86 355 28 730 698 655 1010 1530 M20X42
    355L 2 610 305 630 254 75 140 20 67.5 355 28 730 698 655 1010 1500 M20X42
      4 6 8 10 610 305 630 254 95 170 25 86 355 28 730 698 655 1010 1530 M20X42








    FRAME WITHOUT FEETAND END-SHIELD WITH FLANGE(IM B5)

    FRAME
    SIZE    		 POLES D E F   M N P S T FLANGE
    HOLES    		 AC AD HF L DH*
    80M 2 4 6 8 19 40 6 15·5 165 130 200 12 3·5 4 155 145 185 295 M6X16
    90S 2 4 6 8 24 50 8 20 165 130 200 12 3.5 4 175 155 195 320 M8X19
    90L 2 4 6 8 24 50 8 20 165 130 200 12 3.5 4 175 155 195 345 M8X19
    100L 2 4 6 8 28 60 8 24 215 180 250 15 4 4 196 180 245 385 M10X22
    112M 2 4 6 8 28 60 8 24 230 180 250 15 4 4 220 190 265 400 M10X22
    132S 2 4 6 8 38 80 10 33 265 230 300 15 4 4 259 210 315 470 M12X28
    132M 2 4 6 8 38 80 10 33 265 230 300 15 4 4 259 210 315 510 M12X28
    160M 2 4 6 8 42 110 12 37 300 250 350 19 5 4 315 255 385 615 M16X36
    160L 2 4 6 8 42 110 12 37 300 250 350 19 5 4 315 255 385 660 M16X36
    180M 2 4 6 8 48 110 14 42.5 300 250 350 19 5 4 355 280 430 700 M16X36
    180L 2 4 6 8 48 110 14 42.5 300 250 350 19 5 4 355 280 430 740 M16X36
    200L 2 4 6 8 55 110 16 49 350 300 400 19 5 4 397 305 480 770 M20X42
    225S 4 8 60 140 18 53 400 350 450 19 5 8 445 335 535 815 M20X42
    225M 2 55 110 16 49 400 350 450 19 5 8 445 335 535 820 M20X42
      4 6 8 60 140 18 53 400 350 450 19 5 8 445 335 535 845 M20X42
    250M 2 60 140 18 53 500 450 550 19 5 8 485 370 595 920 M20X42
      4 6 8 65 140 18 58 500 450 550 19 5 8 485 370 595 920 M20X42
    280S 2 65 140 18 58 500 450 550 19 5 8 547 410 650 995 M20X42
      4 6 8 75 140 20 67.5 500 450 550 19 5 8 547 410 650 995 M20X42
    280M 2 65 140 18 58 500 450 550 19 5 8 547 410 650 1045 M20X42
      4 6 8 75 140 20 67.5 500 450 550 19 5 8 547 410 650 1045 M20X42
    315S 2 65 140 18 58 600 550 660 24 6 8 620 530 845 1185 M20X42
      4  6 8 10 80 170 22 71 600 550 660 24 6 8 620 530 845 1220 M20X42
    315M 2 65 140 18 58 600 550 660 24 6 8 620 530 845 1290 M20X42
      4  6 8 10 80 170 22 71 600 550 660 24 6 8 620 530 845 1325 M20X42
    315L 2 65 140 18 58 600 550 660 24 6 8 620 530 845 1290 M20X42
      4  6 8 10 80 170 22 71 600 550 660 24 6 8 620 530 845 1325 M20X42
    355M 2 75 140 20 67.5 740 680 800 24 6 8 698 655 1010 1500 M20X42
      4  6 8 10 95 170 25 86 740 680 800 24 6 8 698 655 1010 1530 M20X42
    355L 2 75 140 20 67·5 740 680 800 24 6 8 698 655 1010 1500 M20X42
      4  6 8 10 95 170 25 86 740 680 800 24 6 8 698 655 1010 1530 M20X42
  • Frame Size Poles Drive End Non-Drive End
    International type International type
    56 2~4 62012RZ 62012RZ
    63 2~4 62012RZ 62012RZ
    71 2~6 62022RZ 62022RZ
    80 2~8 62042RZ 62042RZ
    90 2~8 62052RZ 62052RZ
    100 2~8 62062RZ 62062RZ
    112 2~8 63062RZ 63062RZ
    132 2~8 63082RZ 63082RZ
    160 2~8 63092ZC3 63092ZC3
    180 2~8 6311C3 6311C3
    200 2~8 6312C3 6312C3
    225 2~8 6313C3 6313C3
    250 2~8 6314C3 6314C3
    280 2 6314C3 6314C3
      4~8 6317C3 6317C3
    315 2 6317C3 6317C3
      4~10 NU319C3 6319C3
    355 2 6319C3 6319C3
      4~10 NU322C3 6322C3
    400 4-10 NU326C3 6326C3
  • Classified number Frame size Max.F.Amps Entery hole size
    International standard
    1 H56-80 2.6 2xM20x1.5
    2 H90-100 6.8 2xM25x1.5
    3 H112-132 15.4 2xM32x1.5
    4 H160-180 42.5 2xM40x1.5
    5 H200-225 84.2 2xM50x1.5
    6 H250-280 166.6 2xM63x1.5
    7 H315 358 2xM63x1.5
    8 H355 546 2xM63x1.5
    9 H400 600 3xM63x1.5
  Franme
reference
and size		 Full load current
at rated voltage		 Rated
power		 Full load sreed
in revolutions
per minute		 Efficiency Power
factor		 Direct on
ine
starting
torque
ratio		 Diect on
line
starting
current
ratio		 Direct on
line
pull out
torque
ratio		 Sound power
level @1m
on no load		 Weight Rotor
inertia
WK2
NO Type Amps(A) Power Speed EFF. P.F. LRT LRA BDT Noise Weight J
380V 400V 415V kW HP r/min % Cos RLT RLA RLT LwA dB(A) kg kg.m2*103
1 Y3-80M1-2 1.77 1.74 1.68 0.8 1 2840 75.0 0.83 2.2 6.1 2.3 67 16 0.75
2 Y3-80M2-2 2.61 2.48 2.39 1.1 1.5 2840 76.2 0.84 2.2 6.9 2.3 67 17 0.9
3 Y3-90S-2 3.46 3.28 3.16 1.5 2 2850 78.5 0.84 2.2 7.0 2.3 72 20 1.2
4 Y3-90L-2 4.85 4.61 4.45 2.2 3 2855 81.0 0.85 2.2 7.0 2.3 72 23 1.4
5 Y3-100L-2 6.34 6.03 5.81 3 4 2860 82.6 0.87 2.2 7.5 2.3 76 30 2.9
6 Y3-112M-2 8.2 7.79 7.51 4 5.5 2880 84.2 0.88 2.2 7.5 2.3 77 41 5.5
7 Y3-132S1-2 11.1 10.53 10.15 5.5 7.5 2900 85.7 0.88 2.2 7.5 2.3 80 57.5 10.9
8 Y3-132S2-2 14.9 14.1 13.6 7.5 10 2900 87.0 0.88 2.2 7.5 2.3 80 60.5 12.6
9 Y3-160M1-2 21.2 20.2 19.5 11 15 2930 88.4 0.89 2.2 7.5 2.3 86 107 37.7
10 Y3-160M2-2 28.6 27.2 26.2 15 20 2930 89.4 0.89 2.2 7.5 2.3 86 104 49.9
11 Y3-160L-2 34.7 33.0 31.8 18.5 25 2930 90.0 0.90 2.2 7.5 2.3 86 133 55
12 Y3-180M-2 41 39.0 37.6 22 30 2940 90.5 0.90 2.0 7.5 2.3 89 156 75
13 Y3-200L1-2 55.4 52.6 50.7 30 40 2950 91.4 0.90 2.0 7.5 2.3 92 218 124
14 Y3-200L2-2 67.9 64.5 62.2 38 50 2950 92.0 0.90 2.0 7.5 2.3 92 230 139
15 Y3-225M-2 82.1 78.0 75.2 45 60 2960 92.5 0.90 2.0 7.5 2.3 92 290 233
16 Y3-250M-2 100 94.8 91.4 55 75 2970 93.0 0.90 2.0 7.5 2.3 93 359 312
17 Y3-280S-2 135 129 124 75 100 2975 93.6 0.90 2.0 7.0 2.3 94 494 579
18 Y3-280M-2 160 152 147 90 125 2975 93.9 0.91 2.0 7.1 2.3 94 510 675
19 Y3-315S-2 195 186 179 110 150 2975 94.0 0.91 1.8 7.1 2.2 96 875 1180
20 Y3-315M-2 233 222 214 132 180 2975 94.5 0.91 1.8 7.1 2.2 96 963 1820
21 Y3-315L1-2 279 265 256 160 220 2975 94.6 0.92 1.8 7.1 2.2 99 1010 2080
22 Y3-315L2-2 348 331 319 200 270 2975 94.8 0.92 1.8 7.1 2.2 99 1138 2380
23 Y3-355M-2 433 412 397 250 340 2980 95.2 0.92 1.6 7.1 2.2 103 1685 3000
24 Y3-355L-2 545 518 499 315 430 2980 95.4 0.92 1.6 7.1 2.2 103 1855 3500



  Franme
reference
and size		 Full load current
at rated voltage		 Rated
power		 Full load sreed
in revolutions
per minute		 Efficiency Power
factor		 Direct on
ine
starting
torque
ratio		 Diect on
line
starting
current
ratio		 Direct on
line
pull out
torque
ratio		 Sound power
level @1m
on no load		 Weight Rotor
inertia
WK2
NO Type Amps(A) Power Speed EFF. P.F. LRT LRA BDT Noise Weight J
380V 400V 415V kW HP r/min % Cos RLT RLA RLT LwA dB(A) kg kg.m2*103
1 Y3-80M1-4 1.57 1.49 1.44 0.55 0.75 1390 71 0.75 2.4 5.2 2.3 58 15 1.8
2 Y3-80M2-4 2.05 1.95 1.88 0.8 1 1390 73 0.76 2.3 6.0 2.3 58 15.5 2.1
3 Y3-90S-4 2.85 2.71 2.61 1.1 1.5 1390 76.2 0.77 2.3 6.0 2.3 61 19 2.3
4 Y3-90L-4 3.72 3.54 3.41 1.5 2 1400 78.5 0.78 2.3 6.0 2.3 61 23 2.7
5 Y3-100L1-4 5.09 4.90 4.72 2.2 3 1420 81 0.81 2.3 7.0 2.3 64 29 5.4
6 Y3-100L2-4 6.78 6.39 6.16 3 4 1420 82.6 0.82 2.3 7.0 2.3 64 31 6.7
7 Y3-112M-4 8.8 8.36 8.06 4 5.5 1435 84.2 0.82 2.3 7.0 2.3 65 42 9.5
8 Y3-132S-4 11.7 11.2 10.8 5.5 7.5 1440 85.7 0.83 2.3 7.0 2.3 71 52 21.4
9 Y3-132M-4 15.6 14.8 14.3 7.5 10 1450 87 0.84 2.3 7.0 2.3 71 64.5 29.6
10 Y3-160M-4 22.5 21.4 20.6 11 15 1460 88.4 0.84 2.2 7.0 2.3 75 100 74.7
11 Y3-160L-4 30 28.5 27.5 15 20 1460 89.4 0.85 2.2 7.5 2.3 75 129 91.8
12 Y3-180M-4 36.3 34.5 33.3 18.5 25 1470 90 0.86 2.2 7.5 2.3 76 150 139
13 Y3-180L-4 43.2 40.8 39.3 22 30 1470 90.5 0.86 2.2 7.5 2.3 76 166 158
14 Y3-200L-4 57.6 55.1 53.1 30 40 1470 91.4 0.86 2.2 7.2 2.3 79 228 262.
15 Y3-225S-4 70.2 66.7 64.3 38 50 1475 92 0.87 2.2 7.2 2.3 81 268 406
16 Y3-225M-4 84.9 80.7 77.8 45 60 1475 92.5 0.87 2.2 7.2 2.3 81 313 469
17 Y3-250M-4 103 98.1 94.6 55 75 1480 93 0.87 2.2 7.2 2.3 83 366 660
18 Y3-280S-4 138.3 131 127 75 100 1480 93.6 0.88 2.2 6.8 2.3 86 480 1120
19 Y3-280M-4 165 157 152 90 125 1480 93.9 0.88 2.2 6.8 2.3 86 560 1640
20 Y3-315S-4 201 191 184 110 150 1480 94.5 0.88 2.1 6.9 2.2 93 846 3100
21 Y3-315M-4 240 228 220 132 180 1480 94.8 0.88 2.1 6.9 2.2 93 940 3620
22 Y3-315L1-4 288 273 264 160 220 1480 94.9 0.89 2.1 6.9 2.2 97 1044 4130
23 Y3-315L2-4 360 342 329 200 270 1480 94.9 0.89 2.1 6.9 2.2 97 1162 4730
24 Y3-355M-4 443 421 406 250 340 1490 95.2 0.90 2.1 6.9 2.2 101 1650 6500
25 Y3-355L-4 559 531 511 315 430 1490 95.2 0.90 2.1 6.9 2.2 101 1810 8200



  Franme
reference
and size		 Full load current
at rated voltage		 Rated
power		 Full load sreed
in revolutions
per minute		 Efficiency Power
factor		 Direct on
ine
starting
torque
ratio		 Diect on
line
starting
current
ratio		 Direct on
line
pull out
torque
ratio		 Sound power
level @1m
on no load		 Weight Rotor
inertia
WK2
NO Type Amps(A) Power Speed EFF. P.F. LRT LRA BDT Noise Weight J
380V 400V 415V kW HP r/min % Cos RLT RLA RLT LwA dB(A) kg kg.m2*103
1 Y3-80M1-6 1.3 1.23 1.19 0.37 0.5 880 62 0.70 1.9 4.7 2.0 54 15 1.6
2 Y3-80M2-6 1.8 1.70 1.64 0.55 0.75 880 65 0.72 1.9 4.7 2.1 54 16 1.9
3 Y3-90S-6 2.29 2.18 2.10 0.8 1 905 69 0.72 2.0 5.3 2.1 57 20 2.9
4 Y3-90L-6 3.18 3.02 2.91 1.1 1.5 905 72 0.73 2.0 5.5 2.1 57 23 3.5
5 Y3-100L-6 4 3.80 3.66 1.5 2 920 76 0.75 2.0 5.5 2.1 61 29 6.9
6 Y3-112M-6 5.6 5.29 5.10 2.2 3 935 79 0.76 2.0 6.5 2.1 65 41 14
7 Y3-132S-6 7.4 7.03 6.78 3 4 960 81 0.76 2.1 6.5 2.1 69 59 28.6
8 Y3-132M1-6 9.75 9.26 8.93 4 5.5 960 82 0.76 2.1 6.5 2.1 69 66 35.7
9 Y3-132M2-6 12.9 12.3 11.8 5.5 7.5 960 84 0.77 2.1 6.5 2.1 69 76.5 44.9
10 Y3-160M-6 17.2 16.3 15.8 7.5 10 970 86 0.77 2.0 6.5 2.1 73 106 81
11 Y3-160L-6 24.5 23.3 22.4 11 15 970 87.5 0.78 2.0 6.5 2.1 73 122 116
12 Y3-180L-6 31.6 30.0 28.9 15 20 970 89 0.81 2.0 7.0 2.1 73 154 207
13 Y3-200L1-6 38.6 36.6 35.3 18.5 25 980 90 0.81 2.1 7 2.1 76 202 315
14 Y3-200L2-6 44.7 42.5 41.0 22 30 980 90 0.83 2.0 7 2.1 76 216 360
15 Y3-225M-6 59.3 56.3 54.3 30 40 980 91.5 0.84 2.0 7 2.1 76 287 547
16 Y3-250M-6 71 67.5 65.1 38 50 980 92 0.86 2.1 7 2.1 78 355 843
17 Y3-280S-6 86 81.7 78.1 45 60 980 92.5 0.86 2.1 7 2 80 444 1390
18 Y3-280M-6 104 99.5 95.9 55 75 980 92.8 0.86 2.1 7 2 80 498 1650
19 Y3-315S-6 142 135 130 75 100 985 93.5 0.86 2.0 6.7 2 85 859 4110
20 Y3-315M-6 169 161 155 90 125 985 93.8 0.86 2.0 6.7 2 85 950 4780
21 Y3-315L1-6 207 196 189 110 150 985 94 0.86 2.0 6.7 2 85 1031 5450
22 Y3-315L2-6 245 232 224 132 180 985 94.2 0.87 2.0 6.7 2 85 1107 6120
23 Y3-355M1-6 292 278 268 160 220 990 94.5 0.88 1.9 6.7 2 92 1550 9500
24 Y3-355M2-6 365 347 335 200 270 990 94.5 0.88 1.9 6.7 2 92 1645 10400
25 Y3-355L-6 457 434 418 250 340 990 94.5 0.88 1.9 6.7 2 92 1854 12400



  Franme
reference
and size		 Full load current
at rated voltage		 Rated
power		 Full load sreed
in revolutions
per minute		 Efficiency Power
factor		 Direct on
ine
starting
torque
ratio		 Diect on
line
starting
current
ratio		 Direct on
line
pull out
torque
ratio		 Sound power
level @1m
on no load		 Weight Rotor
inertia
WK2
NO Type Amps(A) Power Speed EFF. P.F. LRT LRA BDT Noise Weight J
380V 400V 415V kW HP r/min % Cos RLT RLA RLT LwA dB(A) kg kg.m2*103
1 Y3-80M1-8 0.88 0.84 0.80 0.18 0.25 645 51 0.61 1.8 3.3 1.9 52 15 2.5
2 Y3-80M2-8 1.15 1.10 1.06 0.25 0.34 645 54 0.61 1.8 3.3 1.9 52 16 3.0
3 Y3-90S-8 1.49 1.41 1.36 0.37 0.5 675 62 0.61 1.8 4 1.9 56 20 5.1
4 Y3-90L-8 2.17 2.07 1.99 0.55 0.75 680 63 0.61 1.8 4 2 56 23 6.5
5 Y3-100L1-8 2.43 2.31 2.22 0.8 1 680 70 0.67 1.8 4 2 59 29 9.0
6 Y3-100L2-8 3.36 3.20 3.08 1.1 1.5 680 72 0.69 1.8 5 2 59 31 11.0
7 Y3-112M-8 4.4 4.18 4.03 1.5 2 690 74 0.70 1.8 5 2 61 41 24.5
8 Y3-132S-8 6.0 5.66 5.46 2.2 3 710 79 0.71 1.8 6 2 64 61 31.4
9 Y3-132M-8 7.8 7.41 7.15 3 4 710 80 0.73 1.8 6 2 64 74 39.5
10 Y3-160M1-8 10.3 9.76 9.41 4 5.5 720 81 0.73 1.9 6 2 68 95.5 75.3
11 Y3-160M2-8 13.6 12.9 12.5 5.5 7.5 720 83 0.74 1.9 6 2 68 107 93.1
12 Y3-160L-8 17.8 16.9 16.3 7.5 10 720 85.5 0.75 1.9 6 2 68 128 126
13 Y3-180L-8 25.5 24.2 23.3 11 15 730 87.5 0.75 2 6.5 2 70 169 203
14 Y3-200L-8 34.1 32.4 31.2 15 20 730 88 0.76 2 6.6 2 73 236 339
15 Y3-225S-8 41.1 39.0 37.6 18.5 25 730 90 0.76 1.9 6.6 2 73 274 491
16 Y3-225M-8 48.9 45.0 43.4 22 30 730 90.5 0.78 1.9 6.6 2 73 290 547
17 Y3-250M-8 63 60.2 58.1 30 40 735 91 0.79 1.9 6.5 2 75 370 834
18 Y3-280S-8 78 73.9 71.2 38 50 740 91.5 0.79 1.9 6.6 2 76 488 1650
19 Y3-280M-8 94 89.4 86.1 45 60 740 92 0.79 1.9 6.6 2 76 563 1930
20 Y3-315S-8 111 106 102 55 75 735 92.8 0.81 1.8 6.6 2 82 748 4790
21 Y3-315M-8 150 143 138 75 100 735 93.5 0.81 1.8 6.2 2 82 854 5580
22 Y3-315L1-8 178 169 163 90 125 735 93.8 0.82 1.8 6.4 2 82 970 6370
23 Y3-315L2-8 217 206 199 110 150 735 94 0.82 1.8 6.4 2 82 1075 7230
24 Y3-355M1-8 261 248 239 132 180 740 93.7 0.82 1.8 6.4 2 90 1575 7900
25 Y3-355M2-8 315 299 288 160 220 740 94.2 0.82 1.8 6.4 2 90 1658 10300
26 Y3-355L-8 387 368 355 200 270 740 94.5 0.83 1.8 6.4 2 90 1834 12300



  Franme
reference
and size		 Full load current
at rated voltage		 Rated
power		 Full load sreed
in revolutions
per minute		 Efficiency Power
factor		 Direct on
ine
starting
torque
ratio		 Diect on
line
starting
current
ratio		 Direct on
line
pull out
torque
ratio		 Sound power
level @1m
on no load		 Rotor
inertia
WK2
NO. Type Amps(A) Power Speed EFF. P.F. LRT LRA BDT Noise J
380V 400V 415V kW HP r/min % Cos RLT RLA RLT LwA dB(A) kg.m2*103
1 Y3-100L1-10 1.33 1.26 1.22 0.25 0.34 530 55.0 0.52 1.2 3.2 1.7 59 5.7
2 Y3-100L2-10 1.89 1.80 1.73 0.37 0.5 530 56.0 0.53 1.2 3.2 1.7 59 7.3
3 Y3-112M1-10 2.50 2.37 2.29 0.55 0.75 540 62.0 0.54 1.2 3.4 1.7 61 10.1
4 Y3-112M2-10 3.30 3.12 3.01 0.8 1 540 63.0 0.55 1.2 3.4 1.7 61 12.3
5 Y3-132S-10 4.40 4.20 4.00 1.1 1.5 550 69.0 0.55 1.2 3.6 1.7 64 27.4
6 Y3-132M-10 5.70 5.50 5.20 1.5 2 565 71.0 0.56 1.2 3.6 1.7 64 35.1
7 Y3-160M1-10 7.7 7.3 7.1 2.2 3 575 76.0 0.57 1.3 4.0 1.8 68 44.2
8 Y3-160M2-10 10.2 9.7 9.4 3 4 575 77.0 0.58 1.3 4.0 1.8 68 84.2
9 Y3-180M-10 12.2 11.5 11.1 4 5.5 580 82.0 0.61 1.3 4.0 1.8 70 104.1
10 Y3-180L-10 16.2 15.4 14.9 5.5 7.5 580 83.0 0.62 1.3 4.0 1.8 70 140.9
11 Y3-200L1-10 20.6 19.5 18.8 7.5 10 580 84.0 0.66 1.3 4.5 1.8 73 227
12 Y3-200L2-10 30.0 28.5 27.5 11 15 580 84.5 0.66 1.3 4.5 1.8 73 379
13 Y3-225M1-10 39.2 37.2 35.9 15 20 580 85.5 0.68 1.3 4.5 1.8 73 548.9
14 Y3-250M2-10 48.1 45.7 44.1 18.5 25 580 86.0 0.68 1.3 4.5 1.8 73 611.5
15 Y3-280S-10 49.9 47.4 45.7 22 30 585 90.5 0.74 1.5 5.2 2.0 76 932.4
16 Y3-280M1-10 67.7 64.3 62.0 30 40 585 91.0 0.74 1.5 5.2 2.0 76 1844.7
17 Y3-280M2-10 83.5 79.3 76.5 38 50 585 91.0 0.74 1.5 5.2 2.0 76 2157.7
18 Y3-315S-10 100 95 91 45 60 590 91.5 0.75 1.5 6.2 2.0 82 5355.2
19 Y3-315M-10 121 115 111 55 75 590 92.0 0.75 1.5 6.2 2.0 82 6238.4
20 Y3-315L1-10 162 154 148 75 100 590 92.5 0.76 1.5 5.8 2.0 82 7121.7
21 Y3-315L2-10 191 181 175 90 125 590 93.0 0.77 1.5 5.9 2.0 82 8083.1
22 Y3-355M1-10 230 218 211 110 150 590 93.2 0.78 1.5 6.0 2.0 90 10176
23 Y3-355M2-10 275 261 252 132 180 590 93.5 0.78 1.5 6.0 2.0 90 11515.4
24 Y3-355L-10 334 317 305 160 220 590 93.5 0.78 1.5 6.0 2.0 90 13751.4



  Franme
reference
and size		 Full load current
at rated voltage		 Rated
power		 Full load sreed
in revolutions
per minute		 Efficiency Power
factor		 Direct on
ine
starting
torque
ratio		 Diect on
line
starting
current
ratio		 Direct on
line
pull out
torque
ratio		 Sound power
level @1m
on no load		 Rotor
inertia
WK2
NO. Type Amps(A) Power Speed EFF. P.F. LRT LRA BDT Noise J
380V 400V 415V kW HP r/min % Cos RLT RLA RLT LwA dB(A) kg.m2*103
1 Y3-100L1-12 1.55 1.47 1.42 0.25 0.34 420 50.0 0.49 1.1 2.8 1.7 59 7.4
2 Y3-100L2-12 2.21 2.10 2.02 0.37 0.5 425 52.0 0.49 1.1 2.8 1.7 59 10.3
3 Y3-112M1-12 3.01 2.84 2.74 0.55 0.75 435 57.0 0.49 1.1 3.2 1.7 61 12.6
4 Y3-132S1-12 3.60 3.40 3.30 0.8 1 440 63.0 0.50 1.1 3.4 1.7 61 28
5 Y3-132S2-12 5.10 4.90 4.70 1.1 1.5 450 65.0 0.50 1.1 3.4 1.7 64 35.9
6 Y3-132M-12 6.70 6.30 6.10 1.5 2 460 68.0 0.50 1.1 3.5 1.7 64 45.2
7 Y3-160M-12 9.0 8.5 8.2 2.2 3 465 74.0 0.50 1.1 4.0 1.8 68 86.1
8 Y3-160L-12 12.2 11.6 11.2 3 4 470 74.5 0.50 1.1 4.0 1.8 68 106.5
9 Y3-180L1-12 14.1 13.4 12.9 4 5.5 470 78.0 0.55 1.2 4.0 1.8 70 144.1
10 Y3-180L2-12 18.5 17.6 16.9 5.5 7.5 475 79.0 0.57 1.2 4.0 1.8 70 232.2
11 Y3-200L1-12 24.2 23.0 22.2 7.5 10 475 81.0 0.58 1.2 4.5 1.8 73 387.7
12 Y3-225M1-12 33.1 31.5 30.3 11 15 480 84.0 0.60 1.2 4.5 1.8 73 561.6
13 Y3-225M2-12 44.7 42.4 40.9 15 20 480 85.0 0.60 1.2 4.5 1.8 73 625.6
14 Y3-250M-12 53.0 50.3 48.5 18.5 25 480 85.5 0.62 1.2 4.5 1.8 73 953.9
15 Y3-280S-12 60.0 57.0 55.0 22 30 485 87.0 0.64 1.2 4.5 1.8 76 1887.1
16 Y3-280M-12 80.1 76.1 73.3 30 40 485 87.5 0.65 1.2 4.5 1.8 76 2207.4
17 Y3-315S-12 93.2 88.5 85.3 38 50 485 90.0 0.67 1.2 4.5 1.5 76 5478.4
18 Y3-315M-12 112.8 107.1 103.2 45 60 485 90.5 0.67 1.2 4.5 1.5 82 6381.9
19 Y3-315L1-12 137.3 130.5 125.8 55 75 485 90.8 0.67 1.2 4.5 1.5 82 7285.5
20 Y3-315L2-12 186.9 177.6 171.1 75 100 485 91.0 0.67 1.2 4.5 1.5 82 8269.1
21 Y3-355M1-12 212.3 201.7 194.4 90 125 490 92.0 0.70 1.2 4.5 1.7 82 10410
22 Y3-355M2-12 258.4 245.4 236.6 110 150 490 92.4 0.70 1.2 4.5 1.7 90 11780.3
23 Y3-355L-12 309.4 293.9 283.3 132 180 490 92.6 0.70 1.2 4.5 1.7 90 14067.7



  Franme
reference
and size		 Full load current
at rated voltage		 Rated
power		 Full load sreed
in revolutions
per minute		 Efficiency Power
factor		 Direct on
ine
starting
torque
ratio		 Diect on
line
starting
current
ratio		 Direct on
line
pull out
torque
ratio		 Sound power
level @1m
on no load		 Rotor
inertia
WK2
NO. Type Amps(A) Power Speed EFF. P.F. LRT LRA BDT Noise J
380V 400V 415V kW HP r/min % Cos RLT RLA RLT LwA dB(A) kg.m2*103
1 Y3-112M1-16 1.52 1.44 1.39 0.25 0.34 310 48.0 0.47 0.9 2.5 1.6 61 28.5
2 Y3-112M2-16 2.34 2.22 2.14 0.37 0.5 315 48.5 0.47 0.9 2.5 1.6 64 36.6
3 Y3-132M-16 3.2 3.0 2.9 0.55 0.75 330 54.0 0.48 0.9 2.7 1.6 64 46
4 Y3-160M1-16 3.8 3.6 3.4 0.8 1 340 62.0 0.48 0.9 2.8 1.6 68 87.7
5 Y3-160M2-16 5.4 5.1 4.9 1.1 1.5 345 64.0 0.48 0.9 2.8 1.6 68 108.4
6 Y3-160L-16 7.1 6.7 8.5 1.5 2 345 66.0 0.48 0.9 2.8 1.6 70 146.7
7 Y3-180M-16 9.4 8.9 8.6 2.2 3 350 71.5 0.49 0.9 3.2 1.6 70 0.2364
8 Y3-180L-16 12.8 12.1 11.7 3 4 355 72.0 0.49 0.9 3.2 1.6 73 394.8
9 Y3-200L1-16 16.4 15.6 15.0 4 5.5 355 74.0 0.50 0.9 3.2 1.6 73 571.8
10 Y3-200L2-16 22.1 21.0 20.2 5.5 7.5 355 75.0 0.50 0.9 3.2 1.6 73 637
11 Y3-225S-16 28.4 26.9 26.0 7.5 10 360 78.0 0.51 0.9 3.5 1.6 73 971.2
12 Y3-250M-16 39.4 37.4 35.7 11 15 360 80.0 0.53 0.9 3.5 1.6 76 1921.5
13 Y3-280M-16 49.8 47.3 45.6 15 20 360 82.0 0.55 1.0 3.5 1.6 76 2247.5
14 Y3-315S-16 57.6 54.7 52.7 18.5 25 365 86.0 0.56 1.0 3.5 1.6 76 5578.1
15 Y3-315M-16 68.1 64.6 62.3 22 30 365 87.0 0.56 1.0 3.5 1.6 82 6498.1
16 Y3-315L1-16 91.7 87.1 83.9 30 40 365 88.0 0.56 1.0 3.5 1.6 82 7418.1
17 Y3-315L2-16 112 106 102 38 50 365 88.0 0.56 1.0 3.5 1.6 82 8419.5

Keyword:

Y3 series three-phase asynchronous motors

Categories:

IE1 SERIES

Qualification certificate

Factory environment4
Factory environment3
Factory environment2
Factory environment1

Get A Quote

Tell us more so we can connect you with the right person for your request.

SUBMIT
%{tishi_zhanwei}%

SAF Coolest v1.3.1.1 设置面板RXOSX-AUNV-ISZAE-XAE

图片ALT信息： GUANGLU
违禁词： 第一，最，一流，领先，独一无二，王者，龙头，领导者，极致，

无数据提示

Sorry, the current column is being updated, please stay tuned!

You can view other columns or return to the HOME

V1.3.1 SVG图标库请自行添加图标，用div包起来，并命名使用
