GE2 high-efficiency motors
An electric motor (Motor) is a device that converts electrical energy into mechanical energy.
Categories:
E-mail: guanglu@guanglu.com
Phone: +86 0576-86389888
Keys:Motor,IE Series,Guanglu
Detail display
An electric motor (Motor) is a device that converts electrical energy into mechanical energy. It uses an energized coil (also known as a stator winding) to generate a rotating magnetic field and acts on a rotor (such as a squirrel cage closed aluminum frame) to form a magneto-electric power rotating torque. Electric motors are divided into DC motors and AC motors according to the use of different power sources, most of the electric motors in the power system are AC motors, which can be synchronous motors or asynchronous motors (motor stator magnetic field speed and rotor rotational speed does not maintain synchronous speed). The motor consists of a stator and a rotor, and the direction of the force on the energized wire in the magnetic field is related to the direction of the current and the direction of the magnetic inductance (direction of the magnetic field). The working principle of the motor is that the magnetic field acts on the current force to make the motor rotate.
- Technical parameter
- Installation method
- Bearing Rules
- Junction Box
-
- Commodity name: GE2 high-efficiency motors
Franme
reference
and sizeFull load current
at rated
voltageRated
power
Full load sreed
in revolutions
per minuteEfficGEncy Power factor Direct on line
startingtorque ratio
DGEct on
linestarting
currentratio
Direct on line
pull outtorque ratio
Sound
power level
@1mon
no load
Weight
Rotor iner
rtia Wk2NO Type Amps(A) Output Speed EFF P.F. LRT LRA BDT Noise Weight J 380V 400V 415V KW r/min % Cos RLT RLA RLT LwdB(A) Kg kg·m²×10³ 1 GE2-562-2 0.37 0.35 0.33 0.12 2700 53.6 0.78 2.2 5.2 2.1 57 3.4 0.23 2 GE2-63M1-2 0.53 0.5 0.48 0.18 2720 60.4 0.80 2.3 5.5 2.3 61 3.8 0.31 3 GE2-63M2-2 0.69 0.66 0.63 0.25 2720 64.8 0.81 2.3 5.5 2.3 61 4 0.60 4 GE2-71M1-2 1.0 0.96 0.91 0.37 2755 69.5 0.81 2.2 6.1 2.3 64 6.5 0.75 5 GE2-71M2-2 1.4 1.3 1.3 0.55 2790 74.1 0.82 2.3 6.1 2.3 64 6.7 0.90 6 GE2-80M1-2 1.8 1.7 1.6 0.75 2850 77.4 0.82 2.3 6.8 2.3 62 11 1.0 7 GE2-80M2-2 2.5 2.4 2.3 1.1 2870 79.6 0.83 2.3 7.1 2.3 62 12.5 1.3 8 GE2-90S-2 3.3 3.2 3.1 1.5 2880 81.3 0.84 2.3 7.3 2.3 67 14.5 2.0 9 GE2-90L-2 4.7 4.5 4.3 2.2 2880 83.2 0.85 2.3 7.6 2.3 67 18 2.6 10 GE2-100L1-2 6.2 5.9 5.7 3 2880 84.6 0.87 2.2 7.8 2.3 74 22 4.3 11 GE2-112M-2 8.0 7.6 7.4 4 2900 85.8 0.88 2.3 8.1 2.3 77 28.5 5.9 12 GE2-132S1-2 10.9 10.4 10.0 5.5 2910 87.0 0.88 2.2 8.2 2.3 79 40.5 13.0 13 GE2-132S2-2 14.5 13.8 13.3 7.5 2910 88.1 0.89 2.2 7.8 2.3 79 49 15.3 14 GE2-160M1-2 21.0 20.0 19.2 11 2940 89.4 0.89 2.2 7.9 2.3 81 83 49.3 15 GE2-160M2-2 28.4 26.9 26.0 15 2940 90.3 0.89 2.2 8.0 2.3 81 95 56.4 16 GE2-160L-2 34.7 33.0 31.8 18.5 2940 90.9 0.89 2.2 8.0 2.3 81 106 65.4 17 GE2-180M-2 41.1 39.1 37.7 22 2950 91.3 0.89 2.2 8.1 2.3 83 140 81.5 18 GE2-63M1-4 0.43 0.41 0.39 0.12 1310 59.1 0.72 2.2 4.4 2.1 52 4.1 0.50 19 GE2-63M2-4 0.58 0.55 0.53 0.18 1310 64.7 0.73 2.2 4.4 2.1 52 4.6 0.60 20 GE2-71M1-4 0.75 0.71 0.69 0.25 1340 68.5 0.74 2.2 5.2 2.1 55 6.3 0.80 21 GE2-71M2-4 1.03 0.98 0.94 0.37 1340 72.7 0.75 2.2 5.2 2.1 55 6.8 1.3 22 GE2-80M1-4 1.4 1.4 1.3 0.55 1390 77.1 0.75 2.3 5.2 2.4 58 11.5 1.8 23 GE2-80M2-4 1.9 1.8 1.7 0.75 1420 79.6 0.76 2.3 6.4 2.3 56 13 2.5 24 GE2-90S-4 2.7 2.6 2.4 1.1 1420 81.4 0.77 2.3 6.6 2.3 59 15.7 3.0 25 GE2-90L-4 3.5 3.5 3.2 1.5 1420 82.8 0.78 2.3 6.7 2.3 59 19 3.9 26 GE2-100L1-4 5.0 4.7 4.5 2.2 1440 84.3 0.80 2.3 7.3 2.3 64 24 7.8 27 GE2-100L2-4 6.6 6.2 6.0 3 1440 85.5 0.81 2.3 7.5 2.3 64 28.5 9.4 28 GE2-112M-4 8.7 8.1 7.9 4 1445 86.6 0.81 2.3 7.5 2.3 65 36.5 13.0 29 GE2-132S-4 11.6 11.1 10.6 5.5 1450 87.7 0.82 2.0 7.5 2.3 71 47.5 28.8 30 GE2-132M-4 15.5 14.7 14.2 7.5 1450 88.7 0.83 2.0 7.3 2.3 71 59 37.0 31 GE2-160M-4 22.4 21.3 20.5 11 1470 89.8 0.83 2.2 7.4 2.3 73 87 77.8 32 GE2-160L-4 29.9 28.4 27.4 15 1470 90.6 0.84 2.2 7.5 2.3 73 103 102 33 GE2-180M-4 36.3 34.4 33.2 18.5 1470 91.2 0.85 2.2 7.6 2.3 76 135 153 34 GE2-180L-4 42.9 40.8 39.3 22 1470 91.6 0.85 2.2 7.7 2.3 76 151 189 35 GE2-71M1-6 0.73 0.7 0.67 0.18 870 56.6 0.66 2 4 1.9 52 6.2 1.1 36 GE2-71M2-6 0.91 0.86 0.83 0.25 870 61.6 0.68 2 4 1.9 52 6.5 1.4 37 GE2-80M1-6 1.2 1.1 1.1 0.37 880 67.6 0.7 2 4.7 1.9 54 12 1.6 38 GE2-80M2-6 1.6 1.5 1.5 0.55 880 73.1 0.72 2.1 4.7 1.9 54 12.5 1.9 39 GE2-90S-6 2.1 2 1.9 0.75 930 75.9 0.71 2 5.8 2.1 57 16.5 3.9 40 GE2-90L-6 3 2.8 2.7 1.1 930 78.1 0.72 2 5.9 2.1 57 19.5 5.4 41 GE2-100L1-6 4 3.7 3.6 1.5 930 79.8 0.72 2 5.9 2.1 61 24.4 10.8 42 GE2-112M-6 5.7 5.4 5.2 2.2 945 81.8 0.72 2.1 6.2 2.1 65 31.5 15.3 43 GE2-132S-6 7.6 7.1 7 3 960 83.3 0.72 2 6.4 2.1 69 40.5 32.2 44 GE2-132M1-6 9.7 9.2 8.9 4 965 84.6 0.74 2 6.6 2.1 69 49 39.9 45 GE2-132M2-6 13 12.3 11.9 5.5 965 86 0.75 2 6.8 2.1 69 62.5 50 46 GE2-160M-6 16.8 15.9 15.3 7.5 970 87.2 0.78 2.1 6.8 2.1 73 82 97.2 47 GE2-160L-6 23.9 22.7 21.8 11 970 88.7 0.79 2.1 6.9 2.1 73 106 128 48 GE2-180L-6 31.4 29.8 28.7 15 980 89.7 0.81 2 7.3 2.1 73 140 229 49 GE2-80M1-8 0.88 0.84 0.8 0.18 645 45.9 0.61 1.8 3.3 1.9 52 10 2.7 50 GE2-80M2-8 1.15 1.1 1.1 0.25 645 50.6 0.61 1.8 3.3 1.9 52 11 3.2 51 GE2-90S-8 1.49 1.41 1.4 0.37 675 56.1 0.61 1.8 4 1.9 56 13 5.5 52 GE2-90L-8 2.2 2.1 2 0.55 680 61.7 0.61 1.8 4 2 56 15 7 53 GE2-100L1-8 2.4 2.3 2.2 0.75 680 66.2 0.67 1.8 4 2 59 23 9.7 54 GE2-100L2-8 3.4 3.2 3.1 1.1 680 70.8 0.69 1.6 5 2 59 25 11.9 55 GE2-112M-8 4.4 4.2 4 1.5 690 74.1 0.7 1.8 5 2 61 28 24.5 56 GE2-132S-8 6 5.7 5.5 2.2 710 77.6 0.71 1.8 6 2 64 40 31.4 57 GE2-132M-8 8 7.6 7.3 3 710 80 0.73 1.8 6 2 64 48 39.5 58 GE2-160M1-8 10.2 9.7 9.3 4 720 81.9 0.73 1.9 6 2 68 77 79.8 59 GE2-160M2-8 13.5 12.8 12.3 5.5 720 83.8 0.74 1.9 6 2 68 90 98.7 60 GE2-160L-8 17.6 16.7 16.1 7.5 720 85.3 0.75 1.9 6 2 68 110 134 61 GE2-180L-8 25.2 23.9 23.1 11 730 86.9 0.75 2 6.5 2 70 131 215 -
FRAME WITHOUT FEETAND END-SHIELD WITH FLANGE(IM B3)
Frame
sizeA AA AB AC HD B B B C D DH E F G H HA K KK L 56 90 23 115 112 156 71 88 36 9 M4*12 20 3 7.2 56 7 5.8*8.8 2-M20*1.5 199 63 100 24 135 123 174 80 100 40 11 M4*12 23 4 8.5 63 7 7*10 2-M20*1.5 221 71 112 26 150 136 198 90 110 45 14 M5*12 30 5 11 71 8 7*10 2-M20*1.5 247 80M 125 35 141 157 220 100 125 50 19 M6*16 40 6 15.5 80 8 10*14 2-M25*1.5 295 90S 140 37 177 177 240 100 125 56 24 M8*19 50 8 20 90 10 10*14 2-M25*1.5 327 90L 140 37 177 177 240 125 150 56 24 M8*19 50 8 20 90 10 10*14 2-M25*1.5 357 100L 160 40 196 197 267 140 172 63 28 M10*22 60 8 24 100 11 12*16 2-M32*1.5 403 112M 190 41 226 219 289 140 180 70 28 M10*22 60 8 24 112 12 12*16 2-M32*1.5 430 132S 216 51 260 258 328 140 186 89 38 M12*28 80 10 33 132 15 12*16 2-M32*1.5 460 132M 216 51 260 258 328 178 224 89 38 M16*36 80 10 33 132 15 12*16 2-M32*1.5 499 160M 254 55 314 315 416 210 260 108 42 M16*36 110 12 37 160 18 15*18 2-M40*1.5 613 160L 254 55 314 315 416 254 304 108 42 M16*36 110 12 37 160 18 15*18 2-M40*1.5 658 180M 279 75 349 355 451 241 311 121 48 M16*36 110 14 42.5 180 22 15*18 2-M40*1.5 698 180L 279 75 349 355 451 279 350 121 48 M16*36 110 14 42.5 180 22 15*18 2-M40*1.5 734

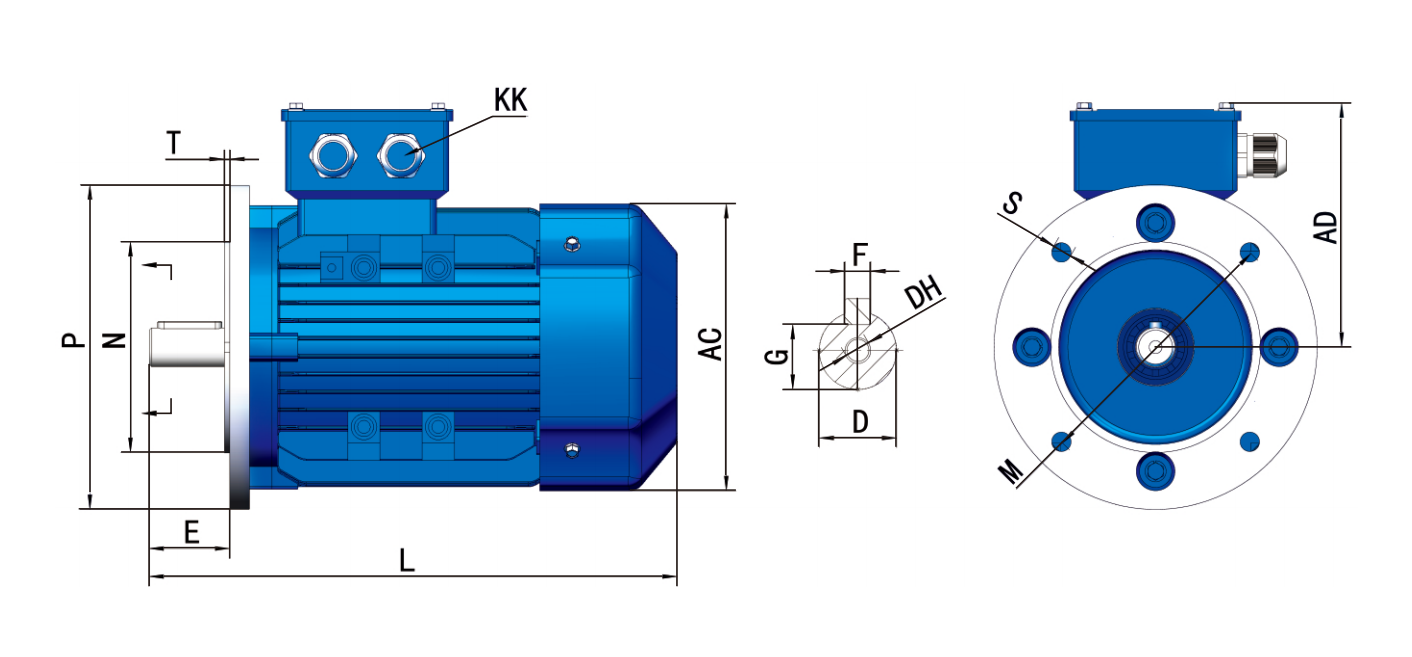

FRAME WITHOUT FEETAND END-SHIELD WITH FLANGE(IM B5)
Frame size P N M S T AC AD D DH E F G KK LL 56 120 80 100 7 3 112 100 9 M4*12 20 3 7.2 2-M20*1.5 199 63 140 95 115 10 3 123 111 11 M4*12 23 4 8.5 2-M20*1.5 221 71 160 110 130 10 3.5 136 127 14 M5*12 30 5 11 2-M20*1.5 247 80M 200 130 165 12 3.5 157 129 19 M6*16 40 6 15.5 2-M20*1.5 295 90S 200 130 165 12 3.5 177 140 24 M8*19 50 8 20 2-M25*1.5 327 90L 200 130 165 12 3.5 177 140 24 M8*19 50 8 20 2-M25*1.5 357 100L 250 180 215 14.5 4 197 156 28 M10*22 60 8 24 2-M32*1.5 403 112M 250 180 215 14.5 4 219 166 28 M10*22 60 8 24 2-M32*1.5 430 132S 300 230 265 14.5 4 258 188 38 M12*28 80 10 33 2-M32*1.5 460 132M 300 230 265 14.5 4 258 188 38 M16*36 80 10 33 2-M32*1.5 499 160M 350 250 300 18.5 5 315 242 42 M16*36 110 12 37 2-M40*1.5 613 160L 350 250 300 18.5 5 315 242 42 M16*36 110 12 37 2-M40*1.5 658 180M 350 250 300 18.5 5 355 272 48 M16*36 110 14 42.5 2-M40*1.5 698 180L 350 250 300 18.5 5 355 272 48 M16*36 110 14 42.5 2-M40*1.5 734 -
Frame Size Poles Drive End Non-Drive End 80 2~4 6204-2RZ 6204-2RZ 90 2~6 6205-2RZ 6205-2RZ 100 2~6 6206-2RZ 6206-2RZ 112 2~6 6306-2RZ 6306-2RZ 132 2~6 6308-2RZ 6308-2RZ 160 2~6 6309-2RZC3 6309-2RZC3 180 2~6 6311 C3 6311 C3 200 2~6 6312 C3 6312 C3 225 2~6 6313 C3 6313 C3 250 2~6 6314 C3 6314 C3 280 2 6314 C3 6314 C3 4~6 6317 C3 6317 C3 315 2 6317 C3 6317 C3 4~6 NU319 C3 6319 C3 355 2 6319 C3 6319 C3 4~6 NU322 C3 NU322 C3 -
Classified number Frame size Max.F.Amps Entery hole size 1 H80 2.6 2xM20x1.5 2 H90-100 6.8 2xM25x1.5 3 H112-132 15.4 2xM32x1.5 4 H160-180 42.5 2xM40x1.5 5 H200-225 84.2 2xM50x1.5 6 H250-280 166.6 2xM63x1.5 7 H315 358 2xM63x1.5 8 H355 546 2xM63x1.5
| Franme reference and size |
Full load current at rated voltage |
Rated power |
Full load sreed in revolutions per minute |
EfficGEncy | Power factor |
Direct on line torque ratio |
DGEct on linestarting currentratio |
Direct on line torque ratio |
Sound power level @1mon no load |
Weight | Rotor iner rtia Wk2 |
|||
| NO | Type | Amps(A) | Output | Speed | EFF | P.F. | LRT | LRA | BDT | Noise | Weight | J | ||
| 380V | 400V | 415V | KW | r/min | % | Cos | RLT | RLA | RLT | LwdB(A) | Kg | kg·m²×10³ | ||
| 1 | GE2-562-2 | 0.37 | 0.35 | 0.33 | 0.12 | 2700 | 53.6 | 0.78 | 2.2 | 5.2 | 2.1 | 57 | 3.4 | 0.23 |
| 2 | GE2-63M1-2 | 0.53 | 0.5 | 0.48 | 0.18 | 2720 | 60.4 | 0.80 | 2.3 | 5.5 | 2.3 | 61 | 3.8 | 0.31 |
| 3 | GE2-63M2-2 | 0.69 | 0.66 | 0.63 | 0.25 | 2720 | 64.8 | 0.81 | 2.3 | 5.5 | 2.3 | 61 | 4 | 0.60 |
| 4 | GE2-71M1-2 | 1.0 | 0.96 | 0.91 | 0.37 | 2755 | 69.5 | 0.81 | 2.2 | 6.1 | 2.3 | 64 | 6.5 | 0.75 |
| 5 | GE2-71M2-2 | 1.4 | 1.3 | 1.3 | 0.55 | 2790 | 74.1 | 0.82 | 2.3 | 6.1 | 2.3 | 64 | 6.7 | 0.90 |
| 6 | GE2-80M1-2 | 1.8 | 1.7 | 1.6 | 0.75 | 2850 | 77.4 | 0.82 | 2.3 | 6.8 | 2.3 | 62 | 11 | 1.0 |
| 7 | GE2-80M2-2 | 2.5 | 2.4 | 2.3 | 1.1 | 2870 | 79.6 | 0.83 | 2.3 | 7.1 | 2.3 | 62 | 12.5 | 1.3 |
| 8 | GE2-90S-2 | 3.3 | 3.2 | 3.1 | 1.5 | 2880 | 81.3 | 0.84 | 2.3 | 7.3 | 2.3 | 67 | 14.5 | 2.0 |
| 9 | GE2-90L-2 | 4.7 | 4.5 | 4.3 | 2.2 | 2880 | 83.2 | 0.85 | 2.3 | 7.6 | 2.3 | 67 | 18 | 2.6 |
| 10 | GE2-100L1-2 | 6.2 | 5.9 | 5.7 | 3 | 2880 | 84.6 | 0.87 | 2.2 | 7.8 | 2.3 | 74 | 22 | 4.3 |
| 11 | GE2-112M-2 | 8.0 | 7.6 | 7.4 | 4 | 2900 | 85.8 | 0.88 | 2.3 | 8.1 | 2.3 | 77 | 28.5 | 5.9 |
| 12 | GE2-132S1-2 | 10.9 | 10.4 | 10.0 | 5.5 | 2910 | 87.0 | 0.88 | 2.2 | 8.2 | 2.3 | 79 | 40.5 | 13.0 |
| 13 | GE2-132S2-2 | 14.5 | 13.8 | 13.3 | 7.5 | 2910 | 88.1 | 0.89 | 2.2 | 7.8 | 2.3 | 79 | 49 | 15.3 |
| 14 | GE2-160M1-2 | 21.0 | 20.0 | 19.2 | 11 | 2940 | 89.4 | 0.89 | 2.2 | 7.9 | 2.3 | 81 | 83 | 49.3 |
| 15 | GE2-160M2-2 | 28.4 | 26.9 | 26.0 | 15 | 2940 | 90.3 | 0.89 | 2.2 | 8.0 | 2.3 | 81 | 95 | 56.4 |
| 16 | GE2-160L-2 | 34.7 | 33.0 | 31.8 | 18.5 | 2940 | 90.9 | 0.89 | 2.2 | 8.0 | 2.3 | 81 | 106 | 65.4 |
| 17 | GE2-180M-2 | 41.1 | 39.1 | 37.7 | 22 | 2950 | 91.3 | 0.89 | 2.2 | 8.1 | 2.3 | 83 | 140 | 81.5 |
| 18 | GE2-63M1-4 | 0.43 | 0.41 | 0.39 | 0.12 | 1310 | 59.1 | 0.72 | 2.2 | 4.4 | 2.1 | 52 | 4.1 | 0.50 |
| 19 | GE2-63M2-4 | 0.58 | 0.55 | 0.53 | 0.18 | 1310 | 64.7 | 0.73 | 2.2 | 4.4 | 2.1 | 52 | 4.6 | 0.60 |
| 20 | GE2-71M1-4 | 0.75 | 0.71 | 0.69 | 0.25 | 1340 | 68.5 | 0.74 | 2.2 | 5.2 | 2.1 | 55 | 6.3 | 0.80 |
| 21 | GE2-71M2-4 | 1.03 | 0.98 | 0.94 | 0.37 | 1340 | 72.7 | 0.75 | 2.2 | 5.2 | 2.1 | 55 | 6.8 | 1.3 |
| 22 | GE2-80M1-4 | 1.4 | 1.4 | 1.3 | 0.55 | 1390 | 77.1 | 0.75 | 2.3 | 5.2 | 2.4 | 58 | 11.5 | 1.8 |
| 23 | GE2-80M2-4 | 1.9 | 1.8 | 1.7 | 0.75 | 1420 | 79.6 | 0.76 | 2.3 | 6.4 | 2.3 | 56 | 13 | 2.5 |
| 24 | GE2-90S-4 | 2.7 | 2.6 | 2.4 | 1.1 | 1420 | 81.4 | 0.77 | 2.3 | 6.6 | 2.3 | 59 | 15.7 | 3.0 |
| 25 | GE2-90L-4 | 3.5 | 3.5 | 3.2 | 1.5 | 1420 | 82.8 | 0.78 | 2.3 | 6.7 | 2.3 | 59 | 19 | 3.9 |
| 26 | GE2-100L1-4 | 5.0 | 4.7 | 4.5 | 2.2 | 1440 | 84.3 | 0.80 | 2.3 | 7.3 | 2.3 | 64 | 24 | 7.8 |
| 27 | GE2-100L2-4 | 6.6 | 6.2 | 6.0 | 3 | 1440 | 85.5 | 0.81 | 2.3 | 7.5 | 2.3 | 64 | 28.5 | 9.4 |
| 28 | GE2-112M-4 | 8.7 | 8.1 | 7.9 | 4 | 1445 | 86.6 | 0.81 | 2.3 | 7.5 | 2.3 | 65 | 36.5 | 13.0 |
| 29 | GE2-132S-4 | 11.6 | 11.1 | 10.6 | 5.5 | 1450 | 87.7 | 0.82 | 2.0 | 7.5 | 2.3 | 71 | 47.5 | 28.8 |
| 30 | GE2-132M-4 | 15.5 | 14.7 | 14.2 | 7.5 | 1450 | 88.7 | 0.83 | 2.0 | 7.3 | 2.3 | 71 | 59 | 37.0 |
| 31 | GE2-160M-4 | 22.4 | 21.3 | 20.5 | 11 | 1470 | 89.8 | 0.83 | 2.2 | 7.4 | 2.3 | 73 | 87 | 77.8 |
| 32 | GE2-160L-4 | 29.9 | 28.4 | 27.4 | 15 | 1470 | 90.6 | 0.84 | 2.2 | 7.5 | 2.3 | 73 | 103 | 102 |
| 33 | GE2-180M-4 | 36.3 | 34.4 | 33.2 | 18.5 | 1470 | 91.2 | 0.85 | 2.2 | 7.6 | 2.3 | 76 | 135 | 153 |
| 34 | GE2-180L-4 | 42.9 | 40.8 | 39.3 | 22 | 1470 | 91.6 | 0.85 | 2.2 | 7.7 | 2.3 | 76 | 151 | 189 |
| 35 | GE2-71M1-6 | 0.73 | 0.7 | 0.67 | 0.18 | 870 | 56.6 | 0.66 | 2 | 4 | 1.9 | 52 | 6.2 | 1.1 |
| 36 | GE2-71M2-6 | 0.91 | 0.86 | 0.83 | 0.25 | 870 | 61.6 | 0.68 | 2 | 4 | 1.9 | 52 | 6.5 | 1.4 |
| 37 | GE2-80M1-6 | 1.2 | 1.1 | 1.1 | 0.37 | 880 | 67.6 | 0.7 | 2 | 4.7 | 1.9 | 54 | 12 | 1.6 |
| 38 | GE2-80M2-6 | 1.6 | 1.5 | 1.5 | 0.55 | 880 | 73.1 | 0.72 | 2.1 | 4.7 | 1.9 | 54 | 12.5 | 1.9 |
| 39 | GE2-90S-6 | 2.1 | 2 | 1.9 | 0.75 | 930 | 75.9 | 0.71 | 2 | 5.8 | 2.1 | 57 | 16.5 | 3.9 |
| 40 | GE2-90L-6 | 3 | 2.8 | 2.7 | 1.1 | 930 | 78.1 | 0.72 | 2 | 5.9 | 2.1 | 57 | 19.5 | 5.4 |
| 41 | GE2-100L1-6 | 4 | 3.7 | 3.6 | 1.5 | 930 | 79.8 | 0.72 | 2 | 5.9 | 2.1 | 61 | 24.4 | 10.8 |
| 42 | GE2-112M-6 | 5.7 | 5.4 | 5.2 | 2.2 | 945 | 81.8 | 0.72 | 2.1 | 6.2 | 2.1 | 65 | 31.5 | 15.3 |
| 43 | GE2-132S-6 | 7.6 | 7.1 | 7 | 3 | 960 | 83.3 | 0.72 | 2 | 6.4 | 2.1 | 69 | 40.5 | 32.2 |
| 44 | GE2-132M1-6 | 9.7 | 9.2 | 8.9 | 4 | 965 | 84.6 | 0.74 | 2 | 6.6 | 2.1 | 69 | 49 | 39.9 |
| 45 | GE2-132M2-6 | 13 | 12.3 | 11.9 | 5.5 | 965 | 86 | 0.75 | 2 | 6.8 | 2.1 | 69 | 62.5 | 50 |
| 46 | GE2-160M-6 | 16.8 | 15.9 | 15.3 | 7.5 | 970 | 87.2 | 0.78 | 2.1 | 6.8 | 2.1 | 73 | 82 | 97.2 |
| 47 | GE2-160L-6 | 23.9 | 22.7 | 21.8 | 11 | 970 | 88.7 | 0.79 | 2.1 | 6.9 | 2.1 | 73 | 106 | 128 |
| 48 | GE2-180L-6 | 31.4 | 29.8 | 28.7 | 15 | 980 | 89.7 | 0.81 | 2 | 7.3 | 2.1 | 73 | 140 | 229 |
| 49 | GE2-80M1-8 | 0.88 | 0.84 | 0.8 | 0.18 | 645 | 45.9 | 0.61 | 1.8 | 3.3 | 1.9 | 52 | 10 | 2.7 |
| 50 | GE2-80M2-8 | 1.15 | 1.1 | 1.1 | 0.25 | 645 | 50.6 | 0.61 | 1.8 | 3.3 | 1.9 | 52 | 11 | 3.2 |
| 51 | GE2-90S-8 | 1.49 | 1.41 | 1.4 | 0.37 | 675 | 56.1 | 0.61 | 1.8 | 4 | 1.9 | 56 | 13 | 5.5 |
| 52 | GE2-90L-8 | 2.2 | 2.1 | 2 | 0.55 | 680 | 61.7 | 0.61 | 1.8 | 4 | 2 | 56 | 15 | 7 |
| 53 | GE2-100L1-8 | 2.4 | 2.3 | 2.2 | 0.75 | 680 | 66.2 | 0.67 | 1.8 | 4 | 2 | 59 | 23 | 9.7 |
| 54 | GE2-100L2-8 | 3.4 | 3.2 | 3.1 | 1.1 | 680 | 70.8 | 0.69 | 1.6 | 5 | 2 | 59 | 25 | 11.9 |
| 55 | GE2-112M-8 | 4.4 | 4.2 | 4 | 1.5 | 690 | 74.1 | 0.7 | 1.8 | 5 | 2 | 61 | 28 | 24.5 |
| 56 | GE2-132S-8 | 6 | 5.7 | 5.5 | 2.2 | 710 | 77.6 | 0.71 | 1.8 | 6 | 2 | 64 | 40 | 31.4 |
| 57 | GE2-132M-8 | 8 | 7.6 | 7.3 | 3 | 710 | 80 | 0.73 | 1.8 | 6 | 2 | 64 | 48 | 39.5 |
| 58 | GE2-160M1-8 | 10.2 | 9.7 | 9.3 | 4 | 720 | 81.9 | 0.73 | 1.9 | 6 | 2 | 68 | 77 | 79.8 |
| 59 | GE2-160M2-8 | 13.5 | 12.8 | 12.3 | 5.5 | 720 | 83.8 | 0.74 | 1.9 | 6 | 2 | 68 | 90 | 98.7 |
| 60 | GE2-160L-8 | 17.6 | 16.7 | 16.1 | 7.5 | 720 | 85.3 | 0.75 | 1.9 | 6 | 2 | 68 | 110 | 134 |
| 61 | GE2-180L-8 | 25.2 | 23.9 | 23.1 | 11 | 730 | 86.9 | 0.75 | 2 | 6.5 | 2 | 70 | 131 | 215 |
