An electric motor (Motor) is a device that converts electrical energy into mechanical energy.

Categories:

IE4 SERIES

E-mail: guanglu@guanglu.com

Phone: +86 0576-86389888

Keys:Motor,IE Series,Guanglu

Get A Quote
Also Like

Detail display

An electric motor (Motor) is a device that converts electrical energy into mechanical energy. It uses an energized coil (also known as a stator winding) to generate a rotating magnetic field and acts on a rotor (such as a squirrel cage closed aluminum frame) to form a magneto-electric power rotating torque. Electric motors are divided into DC motors and AC motors according to the use of different power sources, most of the electric motors in the power system are AC motors, which can be synchronous motors or asynchronous motors (motor stator magnetic field speed and rotor rotational speed does not maintain synchronous speed). The motor consists of a stator and a rotor, and the direction of the force on the energized wire in the magnetic field is related to the direction of the current and the direction of the magnetic inductance (direction of the magnetic field). The working principle of the motor is that the magnetic field acts on the current force to make the motor rotate.

  • Technical parameter
  • Installation method
  • Bearing Rules
  • Junction Box

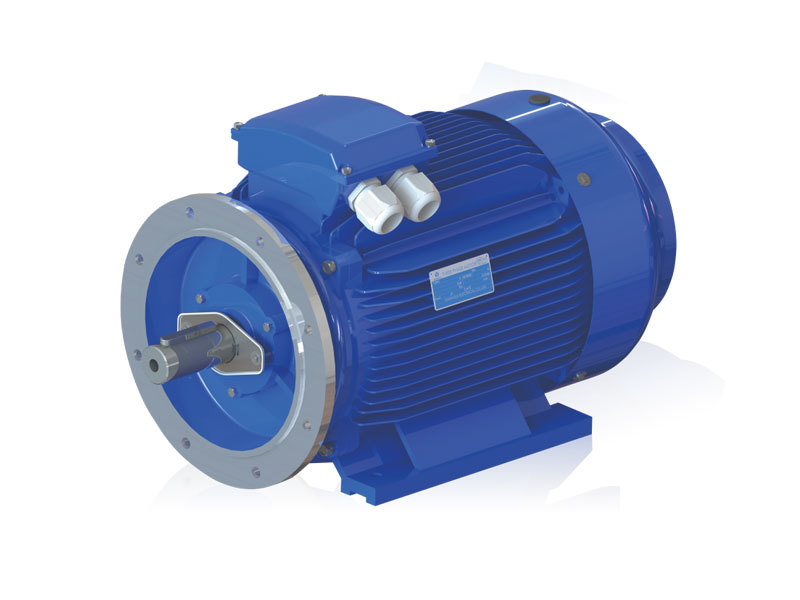

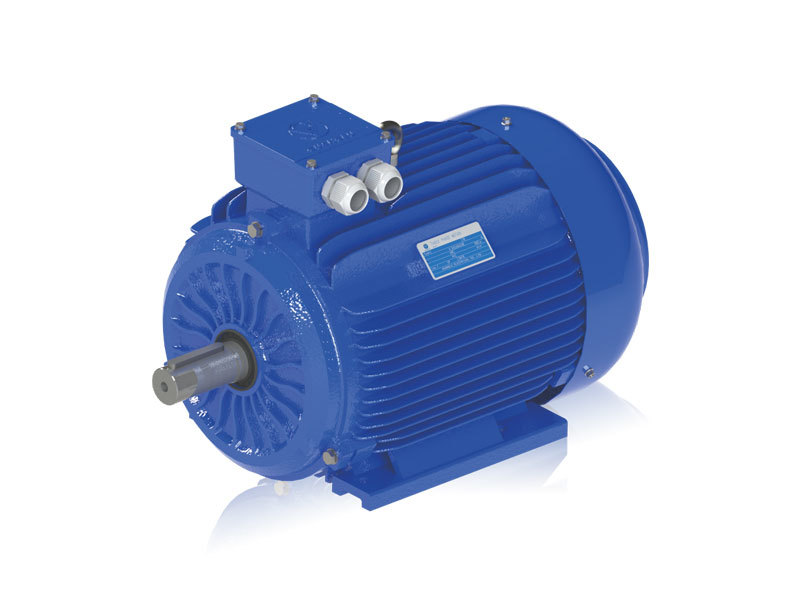

    • Commodity name: IE4
      Franme
    reference
    and size    		 Rated
    power    		 Full load current at
    rated voltage    		 Full load sreed
    in revolutions
    per minute    		 Direct on
    ine starting
    torque
    ratio    		 Direct on
    linepull out    		 Diect on
    linestarting    		 Efficiency Power
    factor    		 Meansound
    pressurelevel
    @1mon
    noload    		 Weight Rotor
    inertia WK2
    NO Type Power Amps
    (A)    		 Speed
    r/min    		 LRT
    RLT    		 BDT
    RLT    		 LRA
    RLA    		 n
    (%)    		 Power
    factor
    (cosØ)    		 Noise
    LwdB(A)    		 Weight
    kg    		 J
    kW HP 380V 400V 415V kgm2
    1 IE4-80M1-2 0.75 1 1.7 1.6 1.5 2890 2.2 2.3 8.5 83.5 0.83 62 24 0.00111
    2 IE4-80M2-2 1.1 1.5 2.4 2.2 2.2 2890 2.2 2.3 8.5 85.2 0.83 62 25 0.00145
    3 IE4-90S-2 1.5 2 3.1 3 2.9 2890 2.2 2.3 9.0 86.5 0.85 67 27 0.00221
    4 IE4-90L-2 2.2 3 4.5 4.2 4.1 2895 2.2 2.3 9.0 88 0.86 67 32 0.00288
    5 IE4-100L-2 3 4 5.9 5.6 5.4 2895 2.2 2.3 9.5 89.1 0.87 74 40 0.00466
    6 IE4-112M-2 4 5.5 7.7 7.3 7 2915 2.2 2.3 9.5 90 0.88 77 63 0.00644
    7 IE4-132S1-2 5.5 7.5 10.4 9.9 9.6 2940 2.0 2.3 9.5 90.9 0.88 79 75 0.01420
    8 IE4-132S2-2 7.5 10 14.1 13.4 12.9 2940 2.0 2.3 9.5 91.7 0.89 79 81 0.01675
    9 IE4-160M1-2 11 15 20.3 9.3 18.6 2950 2.0 2.3 9.5 92.6 0.89 81 129 0.05506
    10 IE4-160M2-2 15 20 27.4 26.1 25.1 2950 2.0 2.3 9.5 93.3 0.89 81 139 0.06299
    11 IE4-160L2 18.5 25 33.7 32 30.9 2950 2.0 2.3 9.5 93.7 0.89 81 165 0.07305
    12 IE4-180M-2 22 30 40 38 36.6 2960 2.0 2.3 9.5 94 0.89 83 206 0.09103
    13 IE4-200L1-2 30 40 54.2 51.5 49.6 2970 2.0 2.3 9.0 94.5 0.89 84 264 0.18362
    14 IE4-200L2-2 37 50 66.6 63.3 61 2970 2.0 2.3 9.0 94.8 0.89 84 282 0.19378
    15 IE4-225M-2 45 60 80 76 73.2 2970 2.0 2.3 9.0 95 0.89 86 366 0.34021
    16 IE4-250M-2 55 75 97 92.6 89.2 2980 2.0 2.3 9.0 95.3 0.89 89 401 0.47312
    17 IE4-280S-2 75 100 132 126 121 2980 1.8 2.3 8.5 95.6 0.89 91 548 1.11065
    18 IE4-280M-2 90 125 159 151 145 2980 1.8 2.3 8.5 95.8 0.89 91 595 1.17163
    19 IE4-315S-2 110 150 193 184 177 2980 1.8 2.3 8.5 96 0.89 92 878 1.52512
    20 IE4-315M-2 132 180 232 220 212 2980 1.8 2.3 8.5 96.2 0.89 92 967 2.15291
    21 IE4-315L1-2 160 200 277 264 254 2980 1.8 2.2 8.5 96.3 0.89 92 1040 2.44178
    22 IE4-315L2-2 200 20 346 329 31 2980 1.8 2.2 8.5 96.5 0.89 92 1134 2.70677
    23 IE4-355M-2 250 340 433 411 396 2980 1.6 2.2 8.5 96.5 0.91 97 1683 3.41190
    24 IE4-355L-2 315 430 545 518 499 2980 1.6 2.2 8.5 96.5 0.91 97 1880 3.98055



      Franme
    reference
    and size    		 Rated
    power    		 Full load current at
    rated voltage    		 Full load sreed
    in revolutions
    per minute    		 Direct on
    ine starting
    torque
    ratio    		 Direct on
    linepull out    		 Diect on
    linestarting    		 Efficiency Power
    factor    		 Meansound
    pressurelevel
    @1mon
    noload    		 Weight Rotor
    inertia WK2
    NO Type Power Amps
    (A)    		 Speed
    r/min    		 LRT
    RLT    		 BDT
    RLT    		 LRA
    RLA    		 n
    (%)    		 Power
    factor
    (cosØ)    		 Noise
    LwdB(A)    		 Weight
    kg    		 J
    kW HP 380V 400V 415V kgm2
    1 IE4-80M2-4 0.75 1 1.8 1.7 1.6 1430 2.3 2.3 8.5 85.7 0.74 56 26 0.00275
    2 IE4-90S-4 1.1 1.5 2.5 2.4 2.3 1445 2.3 2.3 8.5 87.2 0.75 59 27 0.00333
    3 IE4-90L-4 1.5 2 3.4 3.2 3.1 1445 2.3 2.3 9.0 88.2 0.76 59 30 0.00422
    4 IE4-100L1-4 2.2 3 4.6 4.4 4.2 1460 2.3 2.3 9.0 89.5 0.79 64 41 0.00854
    5 IE4-100L2-4 3 4 6.1 5.8 5.6 1460 2.3 2.3 9.5 90.4 0.80 64 46 0.01032
    6 IE4-112M-4 4 5.5 8.1 7.7 7.4 1460 2.3 2.3 9.5 91.1 0.80 65 62 0.01420
    7 IE4-132S-4 5.5 7.5 11 10.4 10 1470 2.0 2.3 9.5 91.9 0.80 71 86 0.03162
    8 IE4-132M-4 7.5 10 14.6 13.9 13.4 1470 2.0 2.3 9.5 92.6 0.81 71 96 0.04061
    9 IE4-160M-4 11 15 21.1 20 19.3 1470 2.0 2.3 9.5 93.3 0.83 73 139 0.08689
    10 IE4-160L-4 15 20 28.2 26.8 25.8 1470 2.0 2.3 9.5 93.9 0.84 73 163 0.11381
    11 IE4-180M-4 18.5 25 34.7 33 31.8 1475 2.0 2.3 9.5 94.2 0.85 76 199 0.17122
    12 IE4-180L-4 22 30 41.1 39.1 37.7 1475 2.0 2.3 9.5 94.5 0.85 76 224 0.21065
    13 IE4-200L-4 30 40 55.8 53.1 51.1 1480 2.0 2.3 9.0 94.9 0.85 76 284 0.32100
    14 IE4-225S-4 37 50 68.7 65.2 26.9 1485 2.0 2.3 9.0 95.2 0.85 78 350 0.53287
    15 IE4-225M-4 45 60 83.3 79.2 76.3 1485 2.0 2.3 9.0 95.4 0.85 78 380 0.62401
    16 IE4-250M-4 55 75 102 96.5 93 1485 2.0 2.3 9.0 95.7 0.86 79 442 0.84594
    17 IE4-280S-4 75 100 135 128 124 1485 2.0 2.3 8.5 96 0.87 80 612 2.16232
    18 IE4-280M-4 90 125 162 154 148 1485 2.0 2.3 8.5 96.1 0.88 80 697 2.61466
    19 IE4-315S-4 110 150 195 185 179 1485 1.8 2.2 8.5 96.3 0.89 88 940 3.69850
    20 IE4-315M-4 132 180 234 222 214 1485 1.8 2.2 8.5 96.4 0.89 88 1040 4.29444
    21 IE4-315L1-4 160 200 283 269 259 1485 1.8 2.2 8.5 96.6 0.90 88 1142 4.69705
    22 IE4-315L2-4 200 20 357 339 327 1485 1.8 2.2 8.5 96.7 0.90 88 1218 5.37943
    23 IE4-355M-4 250 340 446 424 409 1490 1.8 2.2 8.5 96.7 0.90 92 1663 7.39245
    24 IE4-355L-4 315 430 562 534 515 1490 1.8 2.2 8.5 96.7 0.90 92 1816 9.32586



      Franme
    reference
    and size    		 Rated
    power    		 Full load current at
    rated voltage    		 Full load sreed
    in revolutions
    per minute    		 Direct on
    ine starting
    torque
    ratio    		 Direct on
    linepull out    		 Diect on
    linestarting    		 Efficiency Power
    factor    		 Meansound
    pressurelevel
    @1mon
    noload    		 Weight Rotor
    inertia WK2
    NO Type Power Amps
    (A)    		 Speed
    r/min    		 LRT
    RLT    		 BDT
    RLT    		 LRA
    RLA    		 n
    (%)    		 Power
    factor
    (cosØ)    		 Noise
    LwdB(A)    		 Weight
    kg    		 J
    kW HP 380V 400V 415V kgm2
    1 IE4-90S-6 0.75 1 1.9 1.8 1.8 955 2.1 2.1 7.5 82.7 0.70 57 26 0.00422
    2 IE4-90L-6 1.1 1.5 2.7 2.6 2.5 955 2.1 2.1 7.5 84.5 0.70 57 32 0.00588
    3 IE4-100L-6 1.5 2 3.6 3.5 3.3 955 2.1 2.1 7.5 85.9 0.71 61 40 0.01188
    4 IE4-112M-6 2.2 3 5.2 4.9 4.7 965 2.1 2.1 7.5 87.4 0.71 65 50 0.01675
    5 IE4-132S-6 3 4 7.0 6.6 6.4 970 2.0 2.1 7.5 88.6 0.71 69 66 0.03529
    6 IE4-132M1-6 4 5.5 9.1 8.6 8.3 970 2.0 2.1 8.0 89.5 0.72 69 75 0.04372
    7 IE4-132M2-6 5.5 7.5 12.1 11.5 11.1 970 2.0 2.1 8.0 90.5 0.72 69 83 0.05481
    8 IE4-160M-6 7.5 10 15.8 15 14.5 980 2.0 2.1 8.0 91.3 0.76 73 126 0.10856
    9 IE4-160L-6 11 15 22.6 21.5 20.7 980 2.0 2.1 8.5 92.3 0.77 73 163 0.14307
    10 IE4-180L-6 15 20 30.3 28.8 27.7 980 2.0 2.1 8.5 92.9 0.80 73 215 0.25544
    11 IE4-200L1-6 18.5 25 37.2 35.3 34 985 2.0 2.1 8.5 93.4 0.80 73 265 0.37729
    12 IE4-200L2-6 22 30 44.0 41.8 40.3 985 2.0 2.1 8.5 93.7 0.81 74 288 0.42911
    13 IE4-225M-6 30 40 58.3 55.4 53.4 985 2.0 2.1 8.3 94.2 0.82 76 400 0.63607
    14 1E4-250M-6 37 50 70.8 67.3 64.8 990 2.0 2.1 8.3 94.5 0.83 78 424 0.98790
    15 IE4-280S-6 45 60 84.8 80.6 77.7 990 2.0 2.0 8.5 94.8 0.83 78 532 1.95011
    16 IE4-280M-6 55 75 102 97 94 990 2.0 2.0 8.5 95.1 0.84 78 597 2.38793
    17 IE4-315S-6 75 100 139 132 127 990 1.6 2.0 8.0 95.4 0.84 83 807 4.67430
    18 IE4-315M-6 90 125 166 158 152 990 1.6 2.0 8.0 95.6 0.85 83 919 5.43629
    19 IE4-315L1-6 110 150 203 193 186 990 1.6 2.0 8.0 95.8 0.85 83 1029 6.19829
    20 IE4-315L2-6 132 180 243 231 222 990 1.6 2.0 8.0 96 0.86 83 1124 6.96028
    21 IE4-355M1-6 160 200 294 279 269 990 1.6 2.0 8.0 95.2 0.86 85 1522 10.80435
    22 IE4-355M2-6 200 20 363 345 332 990 1.6 2.0 8.0 96.3 0.86 85 1663 11.82792
    23 IE4-355L-6 250 340 452 430 414 990 1.6 2.0 8.0 96.5 0.86 85 1846 14.10252



      Franme
    reference
    and size    		 Rated
    power    		 Full load current at
    rated voltage    		 Full load sreed
    in revolutions
    per minute    		 Direct on
    ine starting
    torque
    ratio    		 Direct on
    linepull out    		 Diect on
    linestarting    		 Efficiency Power
    factor    		 Meansound
    pressurelevel
    @1mon
    noload    		 Weight Rotor
    inertia WK2
    NO Type Power Amps
    (A)    		 Speed
    r/min    		 LRT
    RLT    		 BDT
    RLT    		 LRA
    RLA    		 n
    (%)    		 Power
    factor
    (cosØ)    		 Noise
    LwdB(A)    		 Weight
    kg    		 J
    kW HP 380V 400V 415V kgm2
    1 IE4-100L1-8 0.75 1 2.1 2.0 1.9 700 2.0 2.0 7.0 78.4 0.66 59 34 0.01037
    2 IE4-100L2-8 1.1 1.5 3.0 2.8 2.7 700 2.0 2.0 7.0 80.8 0.67 59 36 0.01268
    3 IE4-112M-8 1.5 2 3.9 3.7 3.6 710 2.0 2.0 7.0 82.6 0.69 61 48 0.02824
    4 IE4-132S-8 2.2 3 5.5 5.2 5.0 720 1.8 2.0 7.5 84.5 0.70 64 72 0.03619
    5 IE4-132M-8 3 4 7.2 6.8 6.6 720 1.8 2.0 7.8 85.9 0.70 64 87 0.04553
    6 IE4-160M1-8 4 5.5 9.5 9.0 8.7 730 1.8 2.0 7.9 87.1 0.71 68 122 0.08679
    7 IE4-160M2-8 5.5 7.5 12.7 12.0 11.6 730 1.8 2.0 8.1 88.3 0.72 68 137 0.10731
    8 IE4-160L-8 7.5 10 16.9 16 15.4 730 1.8 2.0 7.8 89.3 0.74 68 163 0.14523
    9 IE4-180L-8 11 15 24.1 22.9 22.1 735 1.8 2.0 7.9 90.4 0.74 70 216 0.23398
    10 IE4-200L-8 15 20 32.6 30.9 29.8 735 1.8 2.0 8.0 91.2 0.75 73 277 0.39073
    11 IE4-225S-8 18.5 25 39.4 37.4 36 735 1.8 2.0 8.1 91.7 0.75 73 321 0.56593
    12 IE4-225M-8 22 30 46.1 43.8 42.2 735 1.8 2.0 8.3 92.1 0.76 73 341 0.63047
    13 IE4-250M-8 30 40 61.6 58.5 56.4 735 1.8 2.0 7.9 92.7 0.77 75 435 0.96127
    14 IE4-280S-8 37 50 75.6 71.8 69.2 740 1.8 2.0 7.9 93.1 0.78 76 572 1.90179
    15 IE4-280M-8 45 60 91.7 87.1 83.9 740 1.8 2.0 7.9 93.4 0.78 76 661 2.22452
    16 IE4-315S-8 55 75 109 103 100 740 1.6 2.0 8.2 93.7 0.80 82 1000 5.52095
    17 IE4-315M-8 75 100 148 140 135 740 1.6 2.0 7.6 94.2 0.80 82 1094 6.43151
    18 IE4-315L1-8 90 125 175 166 160 740 1.6 2.0 7.7 94.4 0.81 82 1206 7.34206
    19 IE4-315L2-8 110 150 213 202 195 740 1.6 2.0 7.7 94.7 0.81 82 1311 8.33330
    20 IE4-355M1-8 132 180 255 242 234 740 1.6 2.0 7.7 94.9 0.81 89 2346 9.10554
    21 IE4-355M2-8 160 200 308 293 282 740 1.6 2.0 7.7 95.1 0.82 89 2522 11.87178
    22 IE4-355L-8 200 20 392 373 359 740 1.6 2.0 7.8 95.4 0.82 89 2640 14.17698

  • FRAME WITH FEET AND END.SHIELD WITHOUT FLANGE(IM B3)

    FRAME
    SIZE    		 POLES A A/2 B C D E F G H K AB AC AD HD L DH*
    80M 2 4 6 125 62.5 100 50 19 40 6 15.5 80 10 165 158 140 220 300 M6X16
    90S 2 4 6 140 70 100 56 24 50 8 20 90 10 180 177 160 255 350 M8X19
    90L 2 4 6 140 70 125 56 24 50 8 20 90 10 180 177 160 255 385 M8X19
    10I 2 4 6 160 80 140 63 28 60 8 24 100 12 205 198 172 270 400 M10X22
    112M 2 4 6 190 95 140 70 28 60 8 24 112 12 226 235 193 300 425 M10X22
    132S 2 4 6 216 108 140 89 38 80 10 33 132 12 262 293 225 349 502 M12X28
    132M 2 4 6 216 108 178 89 38 80 10 33 132 12 262 293 225 349 533 M12X28
    160M 2 4 6 254 127 210 108 42 110 12 37 160 15 320 315 255 420 660 M16X36
    160L 2 4 6 254 127 254 108 42 110 12 37 160 15 320 315 255 420 730 M16X36
    180M 2 4 6 279 139.5 241 121 48 110 14 42.5 180 15 355 355 280 455 740 M16X36
    180L 2 4 6 279 139.5 279 121 48 110 14 42.5 180 15 355 355 280 455 810 M16X36
    200L 2 4 6 318 159 305 133 55 110 16 49 200 19 395 397 305 505 852 M20X42
    225S 4 356 178 286 149 60 140 18 53 225 19 435 445 335 560 874 M20X42
    225M 2 356 178 311 149 55 110 16 49 225 19 435 445 335 560 890 M20X42
      4 6 356 178 311 149 60 140 18 53 225 19 435 445 335 560 915 M20X42
    250M 2 406 203 349 168 60 140 18 53 250 24 490 485 370 615 985 M20X42
      4 6 406 203 349 168 65 140 18 58 250 24 490 485 370 615 985 M20X42
    280S 2 457 228.5 368 190 65 140 18 58 280 24 550 547 410 680 1045 M20X42
      4 6 457 228.5 368 190 75 140 20 67.5 280 24 550 547 410 680 1045 M20X42
    280M 2 457 228.5 419 190 65 140 18 58 280 24 550 547 410 680 1095 M20X42
      4 6 457 228.5 419 190 75 140 20 67.5 280 24 550 547 410 680 1095 M20X42
    315S 2 508 254 406 216 65 140 18 58 315 28 635 620 530 845 1185 M20X42
      4 6 508 254 406 216 80 170 22 71 315 28 635 620 530 845 1220 M20X42
    315M 2 508 254 457 216 65 140 18 58 315 28 635 620 530 845 1290 M20X42
      4 6 508 254 457 216 80 170 22 71 315 28 635 620 530 845 1325 M20X42
    315L 2 508 254 508 216 65 140 18 58 315 28 635 620 530 845 1290 M20X42
      4 6 508 254 508 216 80 170 22 71 315 28 635 620 530 845 1325 M20X42
    355M 2 610 305 560 254 75 140 20 67.5 355 28 730 698 655 1010 1500 M20X42
      4 6 610 305 560 254 95 170 25 86 355 28 730 698 655 1010 1530 M20X42
    355L 2 610 305 630 254 75 140 20 67.5 355 28 730 698 655 1010 1500 M20X42
      4 6 610 305 630 254 95 170 25 86 355 28 730 698 655 1010 1530 M20X42






    FRAME WITHOUT FEET AND END.SHIELD WITH FLANGE(M B5)

    FRAME
    SIZE    		 POLES D E F G M N P S T FLANGE
    HOLES    		 AC AD HD L DH*
    80M 2 4 6 19 40 6 15.5 165 130 200 12 3.5 4 158 140 240 300 M6X16
    90S 2 4 6 24 50 8 20 165 130 200 12 3.5 4 177 160 260 350 M8X19
    90L 2 4 6 24 50 8 20 165 130 200 12 3.5 4 177 160 260 385 M8X19
    100L 2 4 6 28 60 8 24 215 180 250 15 4 4 198 172 300 425 M10X22
    112M 2 4 6 28 60 8 24 215 180 250 15 4 4 235 193 315 502 M10X22
    132S 2 4 6 38 80 10 33 265 230 300 15 4 4 293 225 349 533 M12X28
    132M 2 4 6 38 80 10 33 265 230 300 15 4 4 293 225 349 660 M12X28
    160M 2 4 6 42 110 12 37 300 250 350 19 5 4 315 255 385 730 M16X36
    160L 2 4 6 42 110 12 37 300 250 350 19 5 4 315 255 385 740 M16X36
    180M 2 4 6 48 110 14 42.5 300 250 350 19 5 4 355 280 430 810 M16X36
    180L 2 4 6 48 110 14 42.5 300 250 350 19 5 4 355 280 430 852 M16X36
    200L 2 4 6 55 110 16 49 350 300 400 19 5 4 397 305 480 874 M20X42
    225S 4 60 140 18 53 400 350 450 19 5 8 445 335 535 890 M20X42
    225M 2 55 110 16 49 400 350 450 19 5 8 445 335 535 915 M20X42
      4 6 60 140 18 53 400 350 450 19 5 8 445 335 535 985 M20X42
    250M 2 60 140 18 53 500 450 550 19 5 8 485 370 595 985 M20X42
      4 6 65 140 18 58 500 450 550 19 5 8 485 370 595 1045 M20X42
    280S 2 65 140 18 58 500 450 550 19 5 8 547 410 650 1045 M20X42
      4 6 75 140 20 67.5 500 450 550 19 5 8 547 410 650 1095 M20X42
    280M 2 65 140 18 58 500 450 550 19 5 8 547 410 650 1095 M20X42
      4 6 75 140 20 67.5 500 450 550 19 5 8 547 410 650 400 M20X42
    315S 2 65 140 18 58 600 550 660 24 6 8 620 530 845 1185 M20X42
      4 6 80 170 22 71 600 550 660 24 6 8 620 530 845 1220 M20X42
    315M 2 65 140 18 58 600 550 660 24 6 8 620 530 845 1290 M20X42
      4 6 80 170 22 71 600 550 660 24 6 8 620 530 845 1325 M20X42
    315L 2 65 140 18 58 600 550 660 24 6 8 620 530 845 1290 M20X42
      4 6 80 170 22 71 600 550 660 24 6 8 620 530 845 1325 M20X42
    355M 2 75 140 20 67.5 740 680 800 24 6 8 698 655 1010 1500 M20X42
      4 6 95 170 25 86 740 680 800 24 6 8 698 655 1010 1530 M20X42
    355L 2 75 140 20 67.5 740 680 800 24 6 8 698 655 1010 1500 M20X42
      4 6 95 170 25 86 740 680 800 24 6 8 698 655 1010 1530 M20X42
  • Frame Size Poles Drive End Non-Drive End
    80 2~4 6204-2RZ 6204-2RZ
    90 2~6 6205-2RZ 6205-2RZ
    100 2~6 6206-2RZ 6206-2RZ
    112 2~6 6306-2RZ 6306-2RZ
    132 2~6 6308-2RZ 6308-2RZ
    160 2~6 6309-2RZC3 6309-2RZC3
    180 2~6 6311 C3 6311 C3
    200 2~6 6312 C3 6312 C3
    225 2~6 6313 C3 6313 C3
    250 2~6 6314 C3 6314 C3
    280 2 6314 C3 6314 C3
      4~6 6317 C3 6317 C3
    315 2 6317 C3 6317 C3
      4~6 NU319 C3 6319 C3
    355 2 6319 C3 6319 C3
      4~6 NU322 C3 NU322 C3
  • Classified number Frame size Max.F.Amps Entery hole size
    1 H80 2.6 2xM20x1.5
    2 H90-100 6.8 2xM25x1.5
    3 H112-132 15.4 2xM32x1.5
    4 H160-180 42.5 2xM40x1.5
    5 H200-225 84.2 2xM50x1.5
    6 H250-280 166.6 2xM63x1.5
    7 H315 358 2xM63x1.5
    8 H355 546 2xM63x1.5
  Franme
reference
and size		 Rated
power		 Full load current at
rated voltage		 Full load sreed
in revolutions
per minute		 Direct on
ine starting
torque
ratio		 Direct on
linepull out		 Diect on
linestarting		 Efficiency Power
factor		 Meansound
pressurelevel
@1mon
noload		 Weight Rotor
inertia WK2
NO Type Power Amps
(A)		 Speed
r/min		 LRT
RLT		 BDT
RLT		 LRA
RLA		 n
(%)		 Power
factor
(cosØ)		 Noise
LwdB(A)		 Weight
kg		 J
kW HP 380V 400V 415V kgm2
1 IE4-80M1-2 0.75 1 1.7 1.6 1.5 2890 2.2 2.3 8.5 83.5 0.83 62 24 0.00111
2 IE4-80M2-2 1.1 1.5 2.4 2.2 2.2 2890 2.2 2.3 8.5 85.2 0.83 62 25 0.00145
3 IE4-90S-2 1.5 2 3.1 3 2.9 2890 2.2 2.3 9.0 86.5 0.85 67 27 0.00221
4 IE4-90L-2 2.2 3 4.5 4.2 4.1 2895 2.2 2.3 9.0 88 0.86 67 32 0.00288
5 IE4-100L-2 3 4 5.9 5.6 5.4 2895 2.2 2.3 9.5 89.1 0.87 74 40 0.00466
6 IE4-112M-2 4 5.5 7.7 7.3 7 2915 2.2 2.3 9.5 90 0.88 77 63 0.00644
7 IE4-132S1-2 5.5 7.5 10.4 9.9 9.6 2940 2.0 2.3 9.5 90.9 0.88 79 75 0.01420
8 IE4-132S2-2 7.5 10 14.1 13.4 12.9 2940 2.0 2.3 9.5 91.7 0.89 79 81 0.01675
9 IE4-160M1-2 11 15 20.3 9.3 18.6 2950 2.0 2.3 9.5 92.6 0.89 81 129 0.05506
10 IE4-160M2-2 15 20 27.4 26.1 25.1 2950 2.0 2.3 9.5 93.3 0.89 81 139 0.06299
11 IE4-160L2 18.5 25 33.7 32 30.9 2950 2.0 2.3 9.5 93.7 0.89 81 165 0.07305
12 IE4-180M-2 22 30 40 38 36.6 2960 2.0 2.3 9.5 94 0.89 83 206 0.09103
13 IE4-200L1-2 30 40 54.2 51.5 49.6 2970 2.0 2.3 9.0 94.5 0.89 84 264 0.18362
14 IE4-200L2-2 37 50 66.6 63.3 61 2970 2.0 2.3 9.0 94.8 0.89 84 282 0.19378
15 IE4-225M-2 45 60 80 76 73.2 2970 2.0 2.3 9.0 95 0.89 86 366 0.34021
16 IE4-250M-2 55 75 97 92.6 89.2 2980 2.0 2.3 9.0 95.3 0.89 89 401 0.47312
17 IE4-280S-2 75 100 132 126 121 2980 1.8 2.3 8.5 95.6 0.89 91 548 1.11065
18 IE4-280M-2 90 125 159 151 145 2980 1.8 2.3 8.5 95.8 0.89 91 595 1.17163
19 IE4-315S-2 110 150 193 184 177 2980 1.8 2.3 8.5 96 0.89 92 878 1.52512
20 IE4-315M-2 132 180 232 220 212 2980 1.8 2.3 8.5 96.2 0.89 92 967 2.15291
21 IE4-315L1-2 160 200 277 264 254 2980 1.8 2.2 8.5 96.3 0.89 92 1040 2.44178
22 IE4-315L2-2 200 20 346 329 31 2980 1.8 2.2 8.5 96.5 0.89 92 1134 2.70677
23 IE4-355M-2 250 340 433 411 396 2980 1.6 2.2 8.5 96.5 0.91 97 1683 3.41190
24 IE4-355L-2 315 430 545 518 499 2980 1.6 2.2 8.5 96.5 0.91 97 1880 3.98055



  Franme
reference
and size		 Rated
power		 Full load current at
rated voltage		 Full load sreed
in revolutions
per minute		 Direct on
ine starting
torque
ratio		 Direct on
linepull out		 Diect on
linestarting		 Efficiency Power
factor		 Meansound
pressurelevel
@1mon
noload		 Weight Rotor
inertia WK2
NO Type Power Amps
(A)		 Speed
r/min		 LRT
RLT		 BDT
RLT		 LRA
RLA		 n
(%)		 Power
factor
(cosØ)		 Noise
LwdB(A)		 Weight
kg		 J
kW HP 380V 400V 415V kgm2
1 IE4-80M2-4 0.75 1 1.8 1.7 1.6 1430 2.3 2.3 8.5 85.7 0.74 56 26 0.00275
2 IE4-90S-4 1.1 1.5 2.5 2.4 2.3 1445 2.3 2.3 8.5 87.2 0.75 59 27 0.00333
3 IE4-90L-4 1.5 2 3.4 3.2 3.1 1445 2.3 2.3 9.0 88.2 0.76 59 30 0.00422
4 IE4-100L1-4 2.2 3 4.6 4.4 4.2 1460 2.3 2.3 9.0 89.5 0.79 64 41 0.00854
5 IE4-100L2-4 3 4 6.1 5.8 5.6 1460 2.3 2.3 9.5 90.4 0.80 64 46 0.01032
6 IE4-112M-4 4 5.5 8.1 7.7 7.4 1460 2.3 2.3 9.5 91.1 0.80 65 62 0.01420
7 IE4-132S-4 5.5 7.5 11 10.4 10 1470 2.0 2.3 9.5 91.9 0.80 71 86 0.03162
8 IE4-132M-4 7.5 10 14.6 13.9 13.4 1470 2.0 2.3 9.5 92.6 0.81 71 96 0.04061
9 IE4-160M-4 11 15 21.1 20 19.3 1470 2.0 2.3 9.5 93.3 0.83 73 139 0.08689
10 IE4-160L-4 15 20 28.2 26.8 25.8 1470 2.0 2.3 9.5 93.9 0.84 73 163 0.11381
11 IE4-180M-4 18.5 25 34.7 33 31.8 1475 2.0 2.3 9.5 94.2 0.85 76 199 0.17122
12 IE4-180L-4 22 30 41.1 39.1 37.7 1475 2.0 2.3 9.5 94.5 0.85 76 224 0.21065
13 IE4-200L-4 30 40 55.8 53.1 51.1 1480 2.0 2.3 9.0 94.9 0.85 76 284 0.32100
14 IE4-225S-4 37 50 68.7 65.2 26.9 1485 2.0 2.3 9.0 95.2 0.85 78 350 0.53287
15 IE4-225M-4 45 60 83.3 79.2 76.3 1485 2.0 2.3 9.0 95.4 0.85 78 380 0.62401
16 IE4-250M-4 55 75 102 96.5 93 1485 2.0 2.3 9.0 95.7 0.86 79 442 0.84594
17 IE4-280S-4 75 100 135 128 124 1485 2.0 2.3 8.5 96 0.87 80 612 2.16232
18 IE4-280M-4 90 125 162 154 148 1485 2.0 2.3 8.5 96.1 0.88 80 697 2.61466
19 IE4-315S-4 110 150 195 185 179 1485 1.8 2.2 8.5 96.3 0.89 88 940 3.69850
20 IE4-315M-4 132 180 234 222 214 1485 1.8 2.2 8.5 96.4 0.89 88 1040 4.29444
21 IE4-315L1-4 160 200 283 269 259 1485 1.8 2.2 8.5 96.6 0.90 88 1142 4.69705
22 IE4-315L2-4 200 20 357 339 327 1485 1.8 2.2 8.5 96.7 0.90 88 1218 5.37943
23 IE4-355M-4 250 340 446 424 409 1490 1.8 2.2 8.5 96.7 0.90 92 1663 7.39245
24 IE4-355L-4 315 430 562 534 515 1490 1.8 2.2 8.5 96.7 0.90 92 1816 9.32586



  Franme
reference
and size		 Rated
power		 Full load current at
rated voltage		 Full load sreed
in revolutions
per minute		 Direct on
ine starting
torque
ratio		 Direct on
linepull out		 Diect on
linestarting		 Efficiency Power
factor		 Meansound
pressurelevel
@1mon
noload		 Weight Rotor
inertia WK2
NO Type Power Amps
(A)		 Speed
r/min		 LRT
RLT		 BDT
RLT		 LRA
RLA		 n
(%)		 Power
factor
(cosØ)		 Noise
LwdB(A)		 Weight
kg		 J
kW HP 380V 400V 415V kgm2
1 IE4-90S-6 0.75 1 1.9 1.8 1.8 955 2.1 2.1 7.5 82.7 0.70 57 26 0.00422
2 IE4-90L-6 1.1 1.5 2.7 2.6 2.5 955 2.1 2.1 7.5 84.5 0.70 57 32 0.00588
3 IE4-100L-6 1.5 2 3.6 3.5 3.3 955 2.1 2.1 7.5 85.9 0.71 61 40 0.01188
4 IE4-112M-6 2.2 3 5.2 4.9 4.7 965 2.1 2.1 7.5 87.4 0.71 65 50 0.01675
5 IE4-132S-6 3 4 7.0 6.6 6.4 970 2.0 2.1 7.5 88.6 0.71 69 66 0.03529
6 IE4-132M1-6 4 5.5 9.1 8.6 8.3 970 2.0 2.1 8.0 89.5 0.72 69 75 0.04372
7 IE4-132M2-6 5.5 7.5 12.1 11.5 11.1 970 2.0 2.1 8.0 90.5 0.72 69 83 0.05481
8 IE4-160M-6 7.5 10 15.8 15 14.5 980 2.0 2.1 8.0 91.3 0.76 73 126 0.10856
9 IE4-160L-6 11 15 22.6 21.5 20.7 980 2.0 2.1 8.5 92.3 0.77 73 163 0.14307
10 IE4-180L-6 15 20 30.3 28.8 27.7 980 2.0 2.1 8.5 92.9 0.80 73 215 0.25544
11 IE4-200L1-6 18.5 25 37.2 35.3 34 985 2.0 2.1 8.5 93.4 0.80 73 265 0.37729
12 IE4-200L2-6 22 30 44.0 41.8 40.3 985 2.0 2.1 8.5 93.7 0.81 74 288 0.42911
13 IE4-225M-6 30 40 58.3 55.4 53.4 985 2.0 2.1 8.3 94.2 0.82 76 400 0.63607
14 1E4-250M-6 37 50 70.8 67.3 64.8 990 2.0 2.1 8.3 94.5 0.83 78 424 0.98790
15 IE4-280S-6 45 60 84.8 80.6 77.7 990 2.0 2.0 8.5 94.8 0.83 78 532 1.95011
16 IE4-280M-6 55 75 102 97 94 990 2.0 2.0 8.5 95.1 0.84 78 597 2.38793
17 IE4-315S-6 75 100 139 132 127 990 1.6 2.0 8.0 95.4 0.84 83 807 4.67430
18 IE4-315M-6 90 125 166 158 152 990 1.6 2.0 8.0 95.6 0.85 83 919 5.43629
19 IE4-315L1-6 110 150 203 193 186 990 1.6 2.0 8.0 95.8 0.85 83 1029 6.19829
20 IE4-315L2-6 132 180 243 231 222 990 1.6 2.0 8.0 96 0.86 83 1124 6.96028
21 IE4-355M1-6 160 200 294 279 269 990 1.6 2.0 8.0 95.2 0.86 85 1522 10.80435
22 IE4-355M2-6 200 20 363 345 332 990 1.6 2.0 8.0 96.3 0.86 85 1663 11.82792
23 IE4-355L-6 250 340 452 430 414 990 1.6 2.0 8.0 96.5 0.86 85 1846 14.10252



  Franme
reference
and size		 Rated
power		 Full load current at
rated voltage		 Full load sreed
in revolutions
per minute		 Direct on
ine starting
torque
ratio		 Direct on
linepull out		 Diect on
linestarting		 Efficiency Power
factor		 Meansound
pressurelevel
@1mon
noload		 Weight Rotor
inertia WK2
NO Type Power Amps
(A)		 Speed
r/min		 LRT
RLT		 BDT
RLT		 LRA
RLA		 n
(%)		 Power
factor
(cosØ)		 Noise
LwdB(A)		 Weight
kg		 J
kW HP 380V 400V 415V kgm2
1 IE4-100L1-8 0.75 1 2.1 2.0 1.9 700 2.0 2.0 7.0 78.4 0.66 59 34 0.01037
2 IE4-100L2-8 1.1 1.5 3.0 2.8 2.7 700 2.0 2.0 7.0 80.8 0.67 59 36 0.01268
3 IE4-112M-8 1.5 2 3.9 3.7 3.6 710 2.0 2.0 7.0 82.6 0.69 61 48 0.02824
4 IE4-132S-8 2.2 3 5.5 5.2 5.0 720 1.8 2.0 7.5 84.5 0.70 64 72 0.03619
5 IE4-132M-8 3 4 7.2 6.8 6.6 720 1.8 2.0 7.8 85.9 0.70 64 87 0.04553
6 IE4-160M1-8 4 5.5 9.5 9.0 8.7 730 1.8 2.0 7.9 87.1 0.71 68 122 0.08679
7 IE4-160M2-8 5.5 7.5 12.7 12.0 11.6 730 1.8 2.0 8.1 88.3 0.72 68 137 0.10731
8 IE4-160L-8 7.5 10 16.9 16 15.4 730 1.8 2.0 7.8 89.3 0.74 68 163 0.14523
9 IE4-180L-8 11 15 24.1 22.9 22.1 735 1.8 2.0 7.9 90.4 0.74 70 216 0.23398
10 IE4-200L-8 15 20 32.6 30.9 29.8 735 1.8 2.0 8.0 91.2 0.75 73 277 0.39073
11 IE4-225S-8 18.5 25 39.4 37.4 36 735 1.8 2.0 8.1 91.7 0.75 73 321 0.56593
12 IE4-225M-8 22 30 46.1 43.8 42.2 735 1.8 2.0 8.3 92.1 0.76 73 341 0.63047
13 IE4-250M-8 30 40 61.6 58.5 56.4 735 1.8 2.0 7.9 92.7 0.77 75 435 0.96127
14 IE4-280S-8 37 50 75.6 71.8 69.2 740 1.8 2.0 7.9 93.1 0.78 76 572 1.90179
15 IE4-280M-8 45 60 91.7 87.1 83.9 740 1.8 2.0 7.9 93.4 0.78 76 661 2.22452
16 IE4-315S-8 55 75 109 103 100 740 1.6 2.0 8.2 93.7 0.80 82 1000 5.52095
17 IE4-315M-8 75 100 148 140 135 740 1.6 2.0 7.6 94.2 0.80 82 1094 6.43151
18 IE4-315L1-8 90 125 175 166 160 740 1.6 2.0 7.7 94.4 0.81 82 1206 7.34206
19 IE4-315L2-8 110 150 213 202 195 740 1.6 2.0 7.7 94.7 0.81 82 1311 8.33330
20 IE4-355M1-8 132 180 255 242 234 740 1.6 2.0 7.7 94.9 0.81 89 2346 9.10554
21 IE4-355M2-8 160 200 308 293 282 740 1.6 2.0 7.7 95.1 0.82 89 2522 11.87178
22 IE4-355L-8 200 20 392 373 359 740 1.6 2.0 7.8 95.4 0.82 89 2640 14.17698

Keyword:

IE4

Categories:

IE4 SERIES

Qualification certificate

Factory environment4
Factory environment3
Factory environment2
Factory environment1

Get A Quote

Tell us more so we can connect you with the right person for your request.

SUBMIT
%{tishi_zhanwei}%

SAF Coolest v1.3.1.1 设置面板RXOSX-AUNV-ISZAE-XAE

图片ALT信息： GUANGLU
违禁词： 第一，最，一流，领先，独一无二，王者，龙头，领导者，极致，

无数据提示

Sorry, the current column is being updated, please stay tuned!

You can view other columns or return to the HOME

V1.3.1 SVG图标库请自行添加图标，用div包起来，并命名使用
