An electric motor (Motor) is a device that converts electrical energy into mechanical energy.

Categories:

GOST SERIES

E-mail: guanglu@guanglu.com

Phone: +86 0576-86389888

Keys:Motor,IE Series,Guanglu

Get A Quote

Also Like

Detail display

An electric motor (Motor) is a device that converts electrical energy into mechanical energy. It uses an energized coil (also known as a stator winding) to generate a rotating magnetic field and acts on a rotor (such as a squirrel cage closed aluminum frame) to form a magneto-electric power rotating torque. Electric motors are divided into DC motors and AC motors according to the use of different power sources, most of the electric motors in the power system are AC motors, which can be synchronous motors or asynchronous motors (motor stator magnetic field speed and rotor rotational speed does not maintain synchronous speed). The motor consists of a stator and a rotor, and the direction of the force on the energized wire in the magnetic field is related to the direction of the current and the direction of the magnetic inductance (direction of the magnetic field). The working principle of the motor is that the magnetic field acts on the current force to make the motor rotate.

Technical parameter
Installation method
Bearing Rules
Junction Box

Commodity name: G-GOST

	Franme reference and size	Full load current at rated voltage	Rated power		Full load sreed in revolutions per minute	Efficiency	Power factor	Direct on ine ratio starting torque	Direct on line ratio pull out torque	Diect on line ratio starting current	Mean sound pressure level @1m on no load	Weight	Rotor inertia Wk2
NO	Type	380V	Output		Speed	EFF	P.F.	Ts	Tmax	Is	Noise	Weight	J
NO	Type	Amps(A)	KW	HP	r/min	%	Cos	Tn	Tn	In	LwdB(A)	Kg	kg ·m2
1	56A2	0.53	0.18	0.3	2720	65.0	0.80	2.3	2.3	5.5	61	(4.2)	0.00030
2	56B2	0.69	0.25	0.3	2720	68.0	0.81	2.3	2.3	5.5	61	(4.5)	0.00035
3	63A2	1	0.37	0.5	2755	69.0	0.81	2.2	2.3	6.1	64	(5.0)	0.0004
4	63B2	1.4	0.55	0.75	2790	74.0	0.82	2.3	2.3	6.1	64	(5.5)	0.0005
5	71A2	1.77	0.75	1.0	2840	75.0	0.83	2.2	2.3	6.1	67	8.7	0.0006
6	71B2	2.6	1.1	1.5	2840	76.2	0.84	2.2	2.3	6.9	67	10.5	0.0008
7	80A2	3.46	1.5	2.0	2850	78.5	0.84	2.2	2.3	7.0	72	12	0.0011
8	80B2	4.85	2.2	3.0	2855	81.0	0.85	2.2	2.3	7.0	72	13.8	0.0018
9	90L2	6.34	3.0	4.0	2860	82.6	0.87	2.2	2.3	7.5	76	20.1	0.0024
10	100S2	8.2	4.0	5.5	2880	84.2	0.88	2.2	2.3	7.5	77	23.5	0.0070
11	100L2	11.1	5.5	7.5	2900	85.7	0.88	2.2	2.3	7.5	80	28.5	0.0080
12	112M2	14.9	7.5	10.0	2895	87.0	0.88	2.2	2.3	7.5	80	37.3	0.0185
13	132M2	21.2	11.0	15.0	2900	88.4	0.89	2.2	2.3	7.5	86	57.6	0.0227

	Franme reference and size	Full load current at rated voltage	Rated power		Full load sreed in revolutions per minute	Efficiency	Power factor	Direct on ine ratio starting torque	Direct on line ratio pull out torque	Diect on line ratio starting current	Mean sound pressure level @1m on no load	Weight	Rotor inertia Wk2
NO	Type	380V	Output		Speed	EFF	P.F.	Ts	Tmax	Is	Noise	Weight	J
NO	Type	Amps(A)	KW	HP	r/min	%	Cos	Tn	Tn	In	LwdB(A)	Kg	kg ·m2
1	56A4	0.44	0.12	0.16	1310	57.0	0.72	2.2	2.1	4.4	52	(4.2)	0.0005
2	56B4	0.69	0.18	0.25	1310	58.0	0.68	2.2	2.1	4.4	52	(4.5)	0.0006
3	63A4	0.79	0.25	0.34	1340	65.0	0.74	2.2	2.1	5.2	55	(5.0)	0.0008
4	63B4	1.12	0.37	0.50	1340	67.0	0.75	2.2	2.1	5.2	55	(5.5)	0.0009
5	71A4	1.57	0.55	0.75	1390	71.0	0.75	2.4	2.3	5.2	58	8.4	0.0010
6	71B4	2.05	0.75	1.0	1390	73.0	0.76	2.3	2.3	6.0	58	10.0	0.0015
7	80A4	2.85	1.1	1.5	1390	76.2	0.77	2.3	2.3	6.0	61	11.5	0.0028
8	80B4	3.72	1.5	2.0	1400	78.5	0.78	2.3	2.3	6.0	61	13.2	0.0034
9	90L4	5.1	2.2	3.0	1410	80.0	0.81	2.3	2.3	7.0	64	19.3	0.0056
10	100S4	6.8	3.0	4.0	1410	82.6	0.82	2.3	2.3	7.0	64	23.3	0.0100
11	100L4	8.8	4.0	5.5	1435	84.2	0.82	2.3	2.3	7.0	65	27	0.0130
12	112M4	11.7	5.5	7.5	1440	85.7	0.83	2.3	2.3	7.0	71	35.5	0.0236
13	132S4	15.6	7.5	10.0	1450	87.0	0.84	2.3	2.3	7.0	71	48	0.0227
14	132M4	22.5	11.0	15.0	1460	88.4	0.84	2.2	2.3	7.0	75	63.2	0.0349

	Franme reference and size	Full load current at rated voltage	Rated power		Full load sreed in revolutions per minute	Efficiency	Power factor	Direct on ine ratio starting torque	Direct on line ratio pull out torque	Diect on line ratio starting current	Mean sound pressure level @1m on no load	Weight	Rotor inertia Wk2
NO	Type	380V	Output		Speed	EFF	P.F.	Ts	Tmax	Is	Noise	Weight	J
NO	Type	Amps(A)	KW	HP	r/min	%	Cos	Tn	Tn	In	LwdB(A)	Kg	kg ·m2
1	71A6	1.3	0.37	0.50	880	62.0	0.70	1.9	2.0	4.7	54	8.4	0.0015
2	71B6	1.8	0.55	0.75	880	65.0	0.72	1.9	2.1	4.7	54	10.0	0.0020
3	80A6	2.3	0.75	1.0	905	69.0	0.72	2.0	2.1	5.3	57	11.7	0.0035
4	80B6	3.2	1.1	1.5	905	72.0	0.73	2.0	2.1	5.5	57	13.2	0.0048
5	90L6	4.0	1.5	2.0	920	76.0	0.75	2.0	2.1	5.5	61	17.8	0.0066
6	100L6	5.6	2.2	3.0	935	79.0	0.76	2.0	2.1	6.5	65	24.3	0.0200
7	112MA6	7.4	3.0	4.0	960	81.0	0.76	2.1	2.1	6.5	69	34	0.0380
8	112MB6	9.75	4.0	5.5	960	82.0	0.76	2.1	2.1	6.5	69	37	0.0425
9	132S6	12.9	5.5	7.5	960	84.0	0.77	2.1	2.1	6.5	69	52	0.0500
10	132M6	17.2	7.5	10.0	970	86.0	0.77	2.0	2.1	6.5	73	62	0.0597

	Franme reference and size	Full load current at rated voltage	Rated power		Full load sreed in revolutions per minute	Efficiency	Power factor	Direct on ine ratio starting torque	Direct on line ratio pull out torque	Diect on line ratio starting current	Mean sound pressure level @1m on no load	Weight	Rotor inertia Wk2
NO	Type	380V	Output		Speed	EFF	P.F.	Ts	Tmax	Is	Noise	Weight	J
NO	Type	Amps(A)	KW	HP	r/min	%	Cos	Tn	Tn	In	LwdB(A)	Kg	kg ·m2
1	71B8	1.10	0.25	0.37	645	54.0	0.61	1.8	1.9	3.3	52	9.0	0.0025
2	80A8	1.49	0.37	0.50	675	62.0	0.61	1.8	1.9	4.0	56	13.2	0.0030
3	80B8	2.17	0.55	0.75	680	63.0	0.61	1.8	2.0	4.0	56	13.6	0.0038
4	90LA8	2.43	0.75	1.0	680	70.0	0.67	1.8	2.0	4.0	59	18.8	0.0063
5	90LB8	3.36	1.1	1.5	680	72.0	0.69	1.8	2.0	5.0	59	19.7	0.0090
6	100L8	4.40	1.5	2.0	690	74.0	0.70	1.8	2.0	5.0	61	26.8	0.0123
7	112MA8	6.0	2.2	3.0	710	79.0	0.71	1.8	2.0	6.0	64	32.8	0.0221
8	112MB8	7.80	3.0	4.0	710	80.0	0.73	1.8	2.0	6.0	64	36.8	0.0288
9	132S8	10.3	4.0	5.5	720	81.0	0.73	1.9	2.0	6.0	68	52.8	0.0690
10	132M8	13.6	5.5	7.5	720	83.0	0.74	1.9	2.0	6.0	68	62	0.0935

AL·GOST MOUNTING AND OVERALL DIMENSIONS
IM B3 80-132

Type	Poles	L	H	C	E	D	G	F	DH	HD	AC	A	AB	B	K	AA	BB	HA	KK
56	2.4.6	204	56	36	23	11	8.5	4	M4X0.7X12	156	110	90	115	71	5.8	23	88	7	2-M20X1.5
63	2.4.6	228	63	40	30	14	11	5	M5X0.8X12	174	123	100	137	80	7	24	100	7	2-M20X1.5
71	2.4.6	281	71	45	40	19	15.5 6		M6X1X16	198	137	112	141	90	7	26	112	8	2-M20X1.5
80A	2.4.6	300	80	50	50	22	18.5	6	M6X1X16	214	158	125	155	100	10	30	125	8	2-M20x1.5
80B	2.4.6	300	80	50	50	22	18.5	6	M6X1X16	214	158	125	155	100	10	30	125	8	2-M20x1.5
90L	2.4.6	360	90	56	50	24	20	8	M8X1.25X19	250	177	140	180	125	10	37	156	10	2-M25x1.5
100S	2.4	385	100	63	60	28	24	8	M8X1.25X19	270	198	160	198	112	12	36	143	10	2-M25x1.5
100L	2.4.6	400	100	63	60	28	24	8	M8X1.25X19	270	198	160	198	140	12	36	171	10	2-M25x1.5
112MA	4.6	425	112	70	80	32	27	10	M10X1.5X22	300	220	190	230	140	12	42	181	13	2-M32x1.5
112MB	2.4.6.8	425	112	70	80	32	27	10	M10X1.5X22	300	220	190	230	140	12	42	181	13	2-M32x1.5
132S	4.6.8	470	132	89	80	38	33	10	M12X1.75X28	345	259	216	270	140	12	50	186	15	2-M32x1.5
132M	2.4.6	510	132	89	80	38	33	10	M12X1.75X28	345	259	216	270	178	12	50	223	15	2-M32x1.5

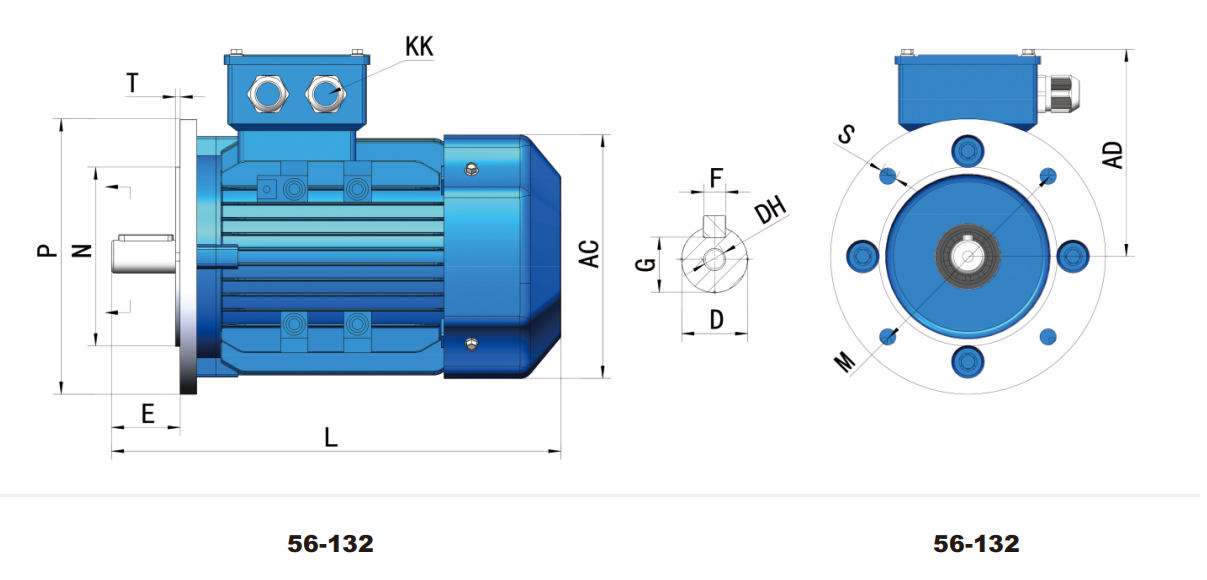

AL·GOSTMOUNTING AND OVERALL DIMENSIONS
IM B5 H80.132

Type	Poles	L	P	N	E	T	D	G	F	DH	M	S	AD	AC	KK
56	2.4.6	204	140	95	23	3	11	8.5	4	1M4X0.7X12	115	10	100	110	2-M20X1.5
63	2.4.6	228	160	110	30	3.5	14	11	5	M5X0.8X12	130	10	111	123	2-M20X1.5
71	2.4.6	281	200	130	40	3.5	19	15.5	6	M6X1X16	165	12	127	137	2-M20X1.5
80A	2.4.6	300	200	130	50	3.5	22	18.5	6	M6X1X16	165	4x12	138	158	2-M20x1.5
80B	2.4.6	300	200	130	50	3.5	22	18.5	6	M6X1X16	165	4x12	138	158	2-M20x1.5
90L	2.4.6	360	250	180	50	4	24	20	8	M8X1.25X19	215	4x15	153	177	2-M25x1.5
100S	2.4	385	250	180	60	4	28	24	8	M8X1.25X19	215	4x15	160	198	2-M25x1.5
100L	2.4.6	400	250	180	60	4	28	24	8	M8X1.25X19	215	4x15	168	198	2-M25x1.5
112MA	4.6	425	300	230	80	4	32	27	10	M10X1.5X22	265	4x15	188	220	2-M32x1.5
112MB	2.4.6.8	425	300	230	80	4	32	27	10	M10X1.5X22	265	4x15	188	220	2-M32x1.5
132S	4.6.8	470	350	250	80	4	38	33	10 M12X1.75X28		300	4x19	213	259	2-M32x1.5
132M	2.4.6	510	350	250	80	4	38	33	10	M12X1.75X28	300	4x19	213	259	2-M32x1.5

	Franme reference and size	Full load current at rated voltage	Rated power		Full load sreed in revolutions per minute	Efficiency	Power factor	Direct on ine ratio starting torque	Direct on line ratio pull out torque	Diect on line ratio starting current	Mean sound pressure level @1m on no load	Weight	Rotor inertia Wk2
NO	Type	380V	Output		Speed	EFF	P.F.	Ts	Tmax	Is	Noise	Weight	J
NO	Type	Amps(A)	KW	HP	r/min	%	Cos	Tn	Tn	In	LwdB(A)	Kg	kg ·m2
1	56A2	0.53	0.18	0.3	2720	65.0	0.80	2.3	2.3	5.5	61	(4.2)	0.00030
2	56B2	0.69	0.25	0.3	2720	68.0	0.81	2.3	2.3	5.5	61	(4.5)	0.00035
3	63A2	1	0.37	0.5	2755	69.0	0.81	2.2	2.3	6.1	64	(5.0)	0.0004
4	63B2	1.4	0.55	0.75	2790	74.0	0.82	2.3	2.3	6.1	64	(5.5)	0.0005
5	71A2	1.77	0.75	1.0	2840	75.0	0.83	2.2	2.3	6.1	67	8.7	0.0006
6	71B2	2.6	1.1	1.5	2840	76.2	0.84	2.2	2.3	6.9	67	10.5	0.0008
7	80A2	3.46	1.5	2.0	2850	78.5	0.84	2.2	2.3	7.0	72	12	0.0011
8	80B2	4.85	2.2	3.0	2855	81.0	0.85	2.2	2.3	7.0	72	13.8	0.0018
9	90L2	6.34	3.0	4.0	2860	82.6	0.87	2.2	2.3	7.5	76	20.1	0.0024
10	100S2	8.2	4.0	5.5	2880	84.2	0.88	2.2	2.3	7.5	77	23.5	0.0070
11	100L2	11.1	5.5	7.5	2900	85.7	0.88	2.2	2.3	7.5	80	28.5	0.0080
12	112M2	14.9	7.5	10.0	2895	87.0	0.88	2.2	2.3	7.5	80	37.3	0.0185
13	132M2	21.2	11.0	15.0	2900	88.4	0.89	2.2	2.3	7.5	86	57.6	0.0227

	Franme reference and size	Full load current at rated voltage	Rated power		Full load sreed in revolutions per minute	Efficiency	Power factor	Direct on ine ratio starting torque	Direct on line ratio pull out torque	Diect on line ratio starting current	Mean sound pressure level @1m on no load	Weight	Rotor inertia Wk2
NO	Type	380V	Output		Speed	EFF	P.F.	Ts	Tmax	Is	Noise	Weight	J
NO	Type	Amps(A)	KW	HP	r/min	%	Cos	Tn	Tn	In	LwdB(A)	Kg	kg ·m2
1	56A4	0.44	0.12	0.16	1310	57.0	0.72	2.2	2.1	4.4	52	(4.2)	0.0005
2	56B4	0.69	0.18	0.25	1310	58.0	0.68	2.2	2.1	4.4	52	(4.5)	0.0006
3	63A4	0.79	0.25	0.34	1340	65.0	0.74	2.2	2.1	5.2	55	(5.0)	0.0008
4	63B4	1.12	0.37	0.50	1340	67.0	0.75	2.2	2.1	5.2	55	(5.5)	0.0009
5	71A4	1.57	0.55	0.75	1390	71.0	0.75	2.4	2.3	5.2	58	8.4	0.0010
6	71B4	2.05	0.75	1.0	1390	73.0	0.76	2.3	2.3	6.0	58	10.0	0.0015
7	80A4	2.85	1.1	1.5	1390	76.2	0.77	2.3	2.3	6.0	61	11.5	0.0028
8	80B4	3.72	1.5	2.0	1400	78.5	0.78	2.3	2.3	6.0	61	13.2	0.0034
9	90L4	5.1	2.2	3.0	1410	80.0	0.81	2.3	2.3	7.0	64	19.3	0.0056
10	100S4	6.8	3.0	4.0	1410	82.6	0.82	2.3	2.3	7.0	64	23.3	0.0100
11	100L4	8.8	4.0	5.5	1435	84.2	0.82	2.3	2.3	7.0	65	27	0.0130
12	112M4	11.7	5.5	7.5	1440	85.7	0.83	2.3	2.3	7.0	71	35.5	0.0236
13	132S4	15.6	7.5	10.0	1450	87.0	0.84	2.3	2.3	7.0	71	48	0.0227
14	132M4	22.5	11.0	15.0	1460	88.4	0.84	2.2	2.3	7.0	75	63.2	0.0349

	Franme reference and size	Full load current at rated voltage	Rated power		Full load sreed in revolutions per minute	Efficiency	Power factor	Direct on ine ratio starting torque	Direct on line ratio pull out torque	Diect on line ratio starting current	Mean sound pressure level @1m on no load	Weight	Rotor inertia Wk2
NO	Type	380V	Output		Speed	EFF	P.F.	Ts	Tmax	Is	Noise	Weight	J
NO	Type	Amps(A)	KW	HP	r/min	%	Cos	Tn	Tn	In	LwdB(A)	Kg	kg ·m2
1	71A6	1.3	0.37	0.50	880	62.0	0.70	1.9	2.0	4.7	54	8.4	0.0015
2	71B6	1.8	0.55	0.75	880	65.0	0.72	1.9	2.1	4.7	54	10.0	0.0020
3	80A6	2.3	0.75	1.0	905	69.0	0.72	2.0	2.1	5.3	57	11.7	0.0035
4	80B6	3.2	1.1	1.5	905	72.0	0.73	2.0	2.1	5.5	57	13.2	0.0048
5	90L6	4.0	1.5	2.0	920	76.0	0.75	2.0	2.1	5.5	61	17.8	0.0066
6	100L6	5.6	2.2	3.0	935	79.0	0.76	2.0	2.1	6.5	65	24.3	0.0200
7	112MA6	7.4	3.0	4.0	960	81.0	0.76	2.1	2.1	6.5	69	34	0.0380
8	112MB6	9.75	4.0	5.5	960	82.0	0.76	2.1	2.1	6.5	69	37	0.0425
9	132S6	12.9	5.5	7.5	960	84.0	0.77	2.1	2.1	6.5	69	52	0.0500
10	132M6	17.2	7.5	10.0	970	86.0	0.77	2.0	2.1	6.5	73	62	0.0597

	Franme reference and size	Full load current at rated voltage	Rated power		Full load sreed in revolutions per minute	Efficiency	Power factor	Direct on ine ratio starting torque	Direct on line ratio pull out torque	Diect on line ratio starting current	Mean sound pressure level @1m on no load	Weight	Rotor inertia Wk2
NO	Type	380V	Output		Speed	EFF	P.F.	Ts	Tmax	Is	Noise	Weight	J
NO	Type	Amps(A)	KW	HP	r/min	%	Cos	Tn	Tn	In	LwdB(A)	Kg	kg ·m2
1	71B8	1.10	0.25	0.37	645	54.0	0.61	1.8	1.9	3.3	52	9.0	0.0025
2	80A8	1.49	0.37	0.50	675	62.0	0.61	1.8	1.9	4.0	56	13.2	0.0030
3	80B8	2.17	0.55	0.75	680	63.0	0.61	1.8	2.0	4.0	56	13.6	0.0038
4	90LA8	2.43	0.75	1.0	680	70.0	0.67	1.8	2.0	4.0	59	18.8	0.0063
5	90LB8	3.36	1.1	1.5	680	72.0	0.69	1.8	2.0	5.0	59	19.7	0.0090
6	100L8	4.40	1.5	2.0	690	74.0	0.70	1.8	2.0	5.0	61	26.8	0.0123
7	112MA8	6.0	2.2	3.0	710	79.0	0.71	1.8	2.0	6.0	64	32.8	0.0221
8	112MB8	7.80	3.0	4.0	710	80.0	0.73	1.8	2.0	6.0	64	36.8	0.0288
9	132S8	10.3	4.0	5.5	720	81.0	0.73	1.9	2.0	6.0	68	52.8	0.0690
10	132M8	13.6	5.5	7.5	720	83.0	0.74	1.9	2.0	6.0	68	62	0.0935
