An electric motor (Motor) is a device that converts electrical energy into mechanical energy. It uses an energized coil (also known as a stator winding) to generate a rotating magnetic field and acts on a rotor (such as a squirrel cage closed aluminum frame) to form a magneto-electric power rotating torque. Electric motors are divided into DC motors and AC motors according to the use of different power sources, most of the electric motors in the power system are AC motors, which can be synchronous motors or asynchronous motors (motor stator magnetic field speed and rotor rotational speed does not maintain synchronous speed). The motor consists of a stator and a rotor, and the direction of the force on the energized wire in the magnetic field is related to the direction of the current and the direction of the magnetic inductance (direction of the magnetic field). The working principle of the motor is that the magnetic field acts on the current force to make the motor rotate.

Technical parameter
Installation method
Bearing Rules
Junction Box

Commodity name: GOST

	Franme reference and size	Full load current at rated voltage	Rated power		Full load sreed in revolutions per minute	Efficiency	Power factor	Direct on ine ratio starting torque	Direct on line ratio pull out torque	Diect on line starting current	Mean sound pressure own peoou	Weight	Rotor inertia Wk2
NO	Type	380V	Output		Speed	EFF	P.F.	Ts	Tmax	Is	Noise	Weight	J
NO	Type	Amps(A)	KW	HP	r/min	%	Cos	Tn	Tn	In	LwdB(A)	Kg	kg·m2
1	80A2	3.46	1.5	2.0	2850	78.5	0.84	2.2	2.3	7.0	72	16.9	0.0011
2	80B2	4.85	2.2	3.0	2855	81.0	0.85	2.2	2.3	7.0	72	19.5	0.0018
3	90L2	6.34	3.0	4.0	2860	82.6	0.87	2.2	2.3	7.5	76	25.75	0.0024
4	100S2	8.2	4.0	5.5	2880	84.2	0.88	2.2	2.3	7.5	77	33.5	0.0070
5	100L2	11.1	5.5	7.5	2900	85.7	0.88	2.2	2.3	7.5	80	38.8	0.0080
6	112M2	14.9	7.5	10.0	2895	87.0	0.88	2.2	2.3	7.5	80	50	0.0185
7	132M2	21.2	11.0	15.0	2900	88.4	0.89	2.2	2.3	7.5	86	73.2	0.0227
8	160S2	28.6	15.0	20.0	2930	89.4	0.89	2.2	2.3	7.5	86	106	0.0500
9	160M2	34.7	18.5	25.0	2930	90.0	0.90	2.0	2.3	7.5	86	117	0.0550
10	180S2	41.0	22.0	30.0	2940	90.5	0.90	2.0	2.3	7.5	89	156	0.0620
11	180M2	55.4	30.0	40.0	2950	91.4	0.90	2.0	2.3	7.5	92	187	0.0700
12	200M2	67.9	37.0	50.0	2950	92.0	0.88	2.0	2.3	7.5	92	230	0.1400
13	200L2	82.1	45.0	60.0	2960	92.5	0.90	2.0	2.3	7.5	92	243	0.1600
14	225M2	100	55.0	75.0	2970	93.0	0.90	2.0	2.3	7.5	93	311	0.2000
15	250S2	135	75.0	100.0	2975	93.6	0.90	2.0	2.3	7.0	94	445	0.3500
16	250M2	160	90.0	125.0	2975	93.9	0.91	2.0	2.3	7.1	96	450	0.4000
17	280S2	195	110.0	150.0	2975	94.0	0.91	1.8	2.2	7.1	96	541	0.6000
18	280M2	233	132.0	180.0	2975	94.5	0.91	1.8	2.2	7.1	96	615	0.7000
19	315S2	279	160.0	220.0	2975	94.6	0.92	1.8	2.2	7.1	99	929	2.8200
20	315M2	348	200.0	270.0	2975	94.8	0.92	1.8	2.2	7.1	99	1093	3.6600
21	355S2	433	250.0	340.0	2980	95.2	0.92	1.6	2.2	7.1	103	1665	3.0000
22	355M2	545	315.0	430.0	2980	95.4	0.92	1.6	2.2	7.1	103	1790	3.5000

	Franme reference and size	Full load current at rated voltage	Rated power		Full load sreed in revolutions per minute	Efficiency	Power factor	Direct on ine ratio starting torque	Direct on line ratio pull out torque	Diect on line starting current	Mean sound pressure own peoou	Weight	Rotor inertia Wk2
NO	Type	380V	Output		Speed	EFF	P.F.	Ts	Tmax	Is	Noise	Weight	J
NO	Type	Amps(A)	KW	HP	r/min	%	Cos	Tn	Tn	In	LwdB(A)	Kg	kg·m2
1	80A4	2.85	1.1	1.5	1390	76.2	0.77	2.3	2.3	6.0	61	16.4	0.0028
2	80B4	3.72	1.5	2.0	1400	78.5	0.78	2.3	2.3	6.0	61	18.7	0.0034
3	90L4	5.1	2.2	3.0	1410	80.0	0.81	2.3	2.3	7.0	64	25.9	0.0056
4	100S4	6.8	3.0	4.0	1410	82.6	0.82	2.3	2.3	7.0	64	33.2	0.0100
5	100L4	8.8	4.0	5.5	1435	84.2	0.82	2.3	2.3	7.0	65	37.0	0.0130
6	112M4	11.7	5.5	7.5	1440	85.7	0.83	2.3	2.3	7.0	71	48.2	0.0236
7	132S4	15.6	7.5	10.0	1450	87.0	0.84	2.3	2.3	7.0	71	62	0.0227
8	132M4	22.5	11.0	15.0	1460	88.4	0.84	2.2	2.3	7.0	75	83.2	0.0349
9	160S4	30.0	15.0	20.0	1460	89.4	0.85	2.2	2.3	7.5	75	120	0.0600
10	160M4	36.3	18.5	25.0	1470	90.0	0.86	2.2	2.3	7.5	76	140	0.0650
11	180S4	43.2	22.0	30.0	1470	90.5	0.86	2.2	2.3	7.5	76	162	0.0700
12	180M4	57.6	30.0	40.0	1470	91.4	0.86	2.2	2.3	7.2	76	188	0.0800
13	200M4	70.2	37.0	50.0	1475	92.0	0.87	2.2	2.3	7.2	79	258	0.1500
14	200L4	84.9	45.0	60.0	1475	92.5	0.87	2.2	2.3	7.2	81	272	0.1800
15	225M4	103	55.0	75.0	1480	93.0	0.87	2.2	2.3	7.2	81	335	0.2000
16	250S4	138.3	75.0	100.0	1480	93.6	0.88	2.2	2.3	6.8	83	435	0.3500
17	250M4	165.5	90.0	125.0	1480	93.9	0.88	2.2	2.3	6.8	86	464	0.4000
18	280S4	201	110.0	150.0	1480	94.5	0.88	2.1	2.2	6.9	86	602	0.6000
19	280M4	240	132.0	180.0	1480	94.8	0.88	2.1	2.2	6.9	93	697	0.7000
20	315S4	288	160.0	220.0	1480	94.9	0.89	2.1	2.2	6.9	93	974	2.7000
21	315M4	360	200.0	270.0	1480	94.9	0.89	2.1	2.2	6.9	97	1150	4.8200
22	355S4	443	250.0	340.0	1490	95.2	0.90	2.1	2.2	6.9	101	1678	6.5000
23	355M4	559	315.0	430.0	1490	95.2	0.90	2.1	2.2	6.9	101	1813	8.2000

	Franme reference and size	Full load current at rated voltage	Rated power		Full load sreed in revolutions per minute	Efficiency	Power factor	Direct on ine ratio starting torque	Direct on line ratio pull out torque	Diect on line starting current	Mean sound pressure own peoou	Weight	Rotor inertia Wk2
NO	Type	380V	Output		Speed	EFF	P.F.	Ts	Tmax	Is	Noise	Weight	J
NO	Type	Amps(A)	KW	HP	r/min	%	Cos	Tn	Tn	In	LwdB(A)	Kg	kg·m2
1	80A6	2.3	0.75	1.0	905	69.0	0.72	2.0	2.1	5.3	57	16.7	0.0035
2	80B6	3.2	1.1	1.5	905	72.0	0.73	2.0	2.1	5.5	57	18.7	0.0048
3	90L6	4.0	1.5	2.0	920	76.0	0.75	2.0	2.1	5.5	61	24.6	0.0066
4	100L6	5.6	2.2	3.0	935	79.0	0.76	2.0	2.1	6.5	65	35.1	0.0200
5	112MA6	7.4	3.0	4.0	960	81.0	0.76	2.1	2.1	6.5	69	43.9	0.0380
6	112MB6	9.75	4.0	5.5	960	82.0	0.76	2.1	2.1	6.5	69	49.7	0.0425
7	132S6	12.9	5.5	7.5	960	84.0	0.77	2.1	2.1	6.5	65	56.0	0.0500
8	132M6	17.2	7.5	10.0	970	86.0	0.77	2.0	2.1	6.5	84	61.0	0.0597
9	160S6	24.5	11.0	15.0	970	87.5	0.78	2.0	2.1	6.5	73	116	0.0700
10	160M6	31.6	15.0	20.0	970	89.0	0.81	2.0	2.1	7.0	73	141	0.0750
11	180M6	38.6	18.5	25.0	980	90.0	0.81	2.1	2.1	7.0	76	169	0.0900
12	200M6	44.7	22.0	30.0	980	90.0	0.83	2.0	2.1	7.0	76	221	0.2000
13	200L6	59.3	30.0	40.0	980	91.5	0.84	2.0	2.1	7.0	76	254	0.2500
14	225M6	71.0	37.0	50.0	980	92.0	0.86	2.1	2.1	7.0	78	300	0.8250
15	250S6	86.0	45.0	60.0	980	92.5	0.86	2.1	2.0	7.0	80	393	1.2800
16	250M6	104	55.0	75.0	980	92.8	0.86	2.1	2.0	7.0	80	423	1.4800
17	280S6	142	75.0	100.0	985	93.5	0.86	2.0	2.0	6.7	85	568	2.6300
18	280M6	169	90.0	125.0	985	93.8	0.86	2.0	2.0	6.7	85	658	3.3300
19	315S6	207	110.0	150.0	985	94.0	0.86	2.0	2.0	6.7	85	988	3.6000
20	315M6	245	132.0	180.0	985	94.2	0.87	2.0	2.0	6.7	85	1070	6.0000
21	355S6	292	160.0	220.0	990	94.5	0.88	1.9	2.0	6.7	92	1575	9.5000
22	355MA6	365	200.0	270.0	990	94.5	0.88	1.9	2.0	6.7	92	1675	10.4000
23	355MB6	457	250.0	340.0	990	94.5	0.88	1.9	2.0	6.7	92	1868	12.4000

	Franme reference and size	Full load current at rated voltage	Rated power		Full load sreed in revolutions per minute	Efficiency	Power factor	Direct on ine ratio starting torque	Direct on line ratio pull out torque	Diect on line starting current	Mean sound pressure own peoou	Weight	Rotor inertia Wk2
NO	Type	380V	Output		Speed	EFF	P.F.	Ts	Tmax	Is	Noise	Weight	J
NO	Type	Amps(A)	KW	HP	r/min	%	Cos	Tn	Tn	In	LwdB(A)	Kg	kg·m2
2	80A8	1.49	0.37	0.50	675	62.0	0.61	1.8	1.9	4.0	56	15.0	0.0030
3	80B8	2.17	0.55	0.75	680	63.0	0.61	1.8	2.0	4.0	56	18.0	0.0038
4	90LA8	2.43	0.75	1.0	680	70.0	0.67	1.8	2.0	4.0	59	23.0	0.0063
5	90LB8	3.36	1.1	1.5	680	72.0	0.69	1.8	2.0	5.0	59	26.1	0.0090
6	100L8	4.40	1.5	2.0	690	74.0	0.70	1.8	2.0	5.0	61	37.3	0.0123
7	112MA8	6.0	2.2	3.0	710	79.0	0.71	1.8	2.0	6.0	64	43.2	0.0221
8	112MB8	7.80	3.0	4.0	710	80.0	0.73	1.8	2.0	6.0	64	49.3	0.0288
9	132S8	10.3	4.0	5.5	720	81.0	0.73	1.9	2.0	6.0	68	69	0.0690
10	132M8	13.6	5.5	7.5	720	83.0	0.74	1.9	2.0	6.0	68	83	0.0935
11	160S8	17.8	7.5	10.0	720	85.5	0.75	1.9	2.0	6.0	68	120	0.0800
12	160M8	25.5	11.0	15.0	730	87.5	0.75	2.0	2.0	6.5	70	148	0.0850
13	180M8	34.1	15.0	20.0	730	88.0	0.76	2.0	2.0	6.6	73	172	0.1000
14	200M8	41.1	18.5	25.0	730	90.0	0.76	1.9	2.0	6.6	73	234	0.3000
15	200L8	48.9	22.0	30.0	730	90.5	0.78	1.9	2.0	6.6	73	242	0.3500
16	225M8	63.0	30.0	40.0	735	91.0	0.79	1.9	2.0	6.5	75	313	0.8250
17	250S8	78.0	37.0	50.0	740	91.5	0.79	1.9	2.0	6.6	76	415	1.3500
18	250M8	94.0	45.0	60.0	740	92.0	0.79	1.9	2.0	6.6	76	458	1.5500
19	280S8	111.0	55.0	75.0	740	92.8	0.81	1.8	2.0	6.6	82	562	2.6300
20	280M8	150	75.0	100.0	740	93.5	0.81	1.8	2.0	6.2	82	700	3.3300
21	315S8	178.0	90.0	125.0	740	93.8	0.82	1.8	2.0	6.4	82	927	3.6000
22	315M8	217	110.0	150.0	740	94.0	0.82	1.8	2.0	6.4	82	1075	6.0000
23	355S8	261.0	132.0	180.0	740	93.7	0.82	1.8	2.0	6.4	90	1574	7.9000
24	355MA8	315.0	160.0	220.0	740	94.2	0.82	1.8	2.0	6.4	90	1675	10.3000
25	355MB8	387.0	200.0	270.0	740	94.5	0.83	1.8	2.0	6.4	90	1841	12.3000

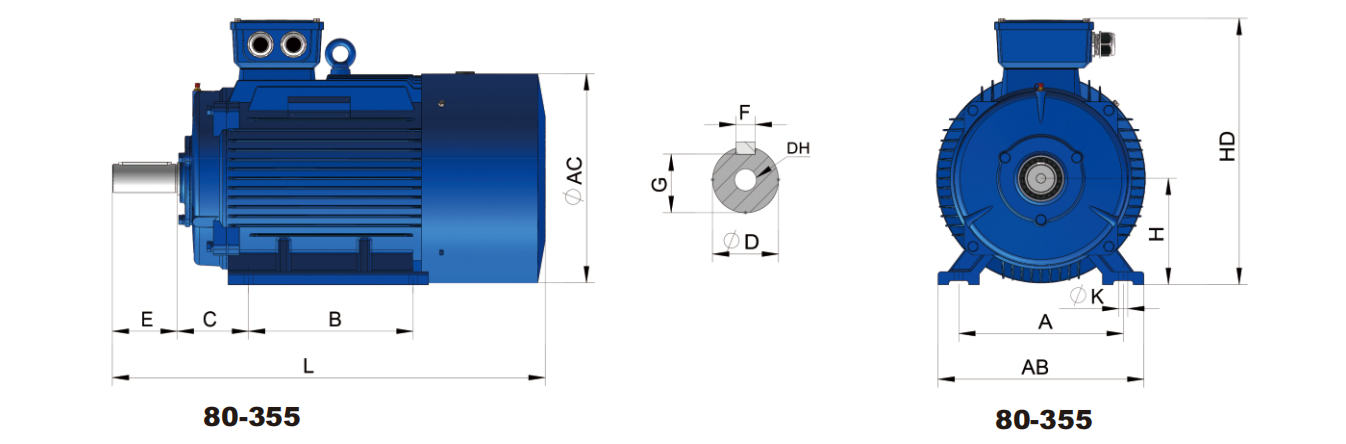

MOUNTING AND OVERALL DIMENSIONS
IM B3 H80-355

Type	Poles	L	H	C	E	D	G	F	DH	HD	AC	A	AB	B	K
80A	2.4.6	310	80	50	50	22	18.5	6	M6X1X16	214	158	125	165	100	10
80B	2.4.6	310	80	50	50	22	18.5	6	M6X1X16	214	158	125	165	100	10
90L	2.4.6	360	90	56	50	24	20	8	M8X1.25X19	250	177	140	180	125	10
100S	2.4	385	100	63	60	28	24	8	M8X1.25X19	270	198	160	205	112	12
100L	2.4.6	385	100	63	60	28	24	8	M8X1.25X19	270	198	160	205	140	12
112MA	4.6	435	112	70	80	32	27	10	M10X1.5X22	300	220	190	230	140	12
112MB	2.4.6.8	435	112	70	80	32	27	10	M10X1.5X22	300	220	190	230	140	12
132S	4.6.8	470	132	89	80	38	33	10	M12X1.75X28	345	259	216	270	140	12
132M	2.4.6	510	132	89	80	38	33	10	M12X1.75X28	345	259	216	270	178	12
160S	2	615	160	108	110	42	37	12	M16X2X45	420	315	254	320	178	15
160S	4.6.8	615	160	108	110	48	42.5	14	M16X2X45	420	315	254	320	178	15
160M	2	660	160	108	110	42	37	12	M16X2X45	420	315	254	320	210	15
160M	4.6.8	660	160	108	110	48	42.5	14	M16X2X45	420	315	254	320	21
180S	2	700	180	121	110	48	42.5	14	M16X2X45	455	355	279	355	203	15
180S	4.6.8	700	180	121	110	55	49	16	M16X2X45	455	355	279	355	203	15
180M	2	740	180	121	110	48	42.5	14	M16X2X45	455	355	279	355	241	15
180M	4.6.8	740	180	121	110	55	49	16	M16X2X45	455	355	279	355	241	15
200M	2	770	200	133	110	55	49	16	M18X2.5X50	505	397	318	395	267	19
200M	4.6.8	800	200	133	140	60	53	18	M18X2.5X50	505	397	318	395	267	19
200L	2	770	200	133	110	55	49	16	M18X2.5X50	505	397	318	395	305	19
200L	4.6.8	800	200	133	140	60	53	18	M18X2.5X50	505	397	318	395	305	19
225M	2	820	225	149	110	55	49	16	M18X2.5X50	560	445	356	435	311	19
225M	4.6.8	820	225	149	140	65	58	18	M18X2.5X50	560	445	356	435	311	19
250S	2	845	250	168	140	65	58	18	M20X2.5X60	615	485	406	490	311	24
250S	4.6.8	845	250	168	140	75	67.5	20	M20X2.5X60	615	485	406	490	311	24
250M	2	920	250	168	140	65	58	18	M20X2.5X60	615	485	406	490	349	24
250M	4.6.8	920	250	168	140	75	67.5	20	M20X2.5X60	615	485	406	490	349	24
280S	2	995	280	190	140	70	62.5	20	M22X2.2X60	680	547	457	550	368	24
280S	4.6.8	1025	280	190	170	80	71	22	M22X2.2X60	680	547	457	550	368	24
280M	2	1045	280	190	140	70	62.5	20	M22X2.2X60	680	547	457	550	419	24
280M	4.6.8	1075	280	190	170	80	71	22	M22X2.2X60	680	547	457	550	419	24
315S	2	1185	315	216	140	75	67.5	20	M22X2.2X60	845	620	508	635	406	28
315S	4.6.8	1220	315	216	170	90	81	25	M22X2.2X60	845	620	508	635	406	28
315M	2	1290	315	216	140	75	67.5	20	M22X2.2X60	845	620	508	635	457	28
315M	4.6.8	1325	315	216	170	90	81	25	M22X2.2X60	845	620	508	635	457	28
355S	2	1560	355	254	170	85	76	22	M24X3X70	1010	698	610	730	500	28
355S	4.6.8	1560	355	254	210	100	90	28	M24X3X70	1010	698	610	730	500	28
355M	2	1560	355	254	170	85	76	22	M24X3X70	1010	698	610	730	560	28
355M	4.6.8	1560	355	254	210	100	90	28	M24X3X70	1010	698	610	730	560	28

MOUNTING AND OVERALL DIMENSIONS
IM B5 H80-355

TYPE	POLES	D	E	F	G	P	N	M	S	T	AD	HF	AC	L
63	2.4	11	23	4	8.5	140	95	115	10	3	119	189	120	217
71	2.4	14	30	5	11	160	110	130	12	3.5	131	211	136	250
80	2.4	19	40	6	15.5	200	130	165	12	3.5	147	247	160	310
90L1	2.4	24	50	8	20	200	130	165	12	3.5	156	256	175	340
90L2	2.4	24	50	8	20	200	130	165	12	3.5	156	256	175	340
100L	2.4	28	60	8	24	250	180	215	15	4	150	275	196	425
112M	2.4	28	60	8	24	250	180	215	15	4	173	298	220	450
132S	2.4	38	80	10	33	300	230	265	15	4	198	348	259	485
132M	2.4	38	80	10	33	300	230	265	15	4	198	348	259	525

	Franme reference and size	Full load current at rated voltage	Rated power		Full load sreed in revolutions per minute	Efficiency	Power factor	Direct on ine ratio starting torque	Direct on line ratio pull out torque	Diect on line starting current	Mean sound pressure own peoou	Weight	Rotor inertia Wk2
NO	Type	380V	Output		Speed	EFF	P.F.	Ts	Tmax	Is	Noise	Weight	J
NO	Type	Amps(A)	KW	HP	r/min	%	Cos	Tn	Tn	In	LwdB(A)	Kg	kg·m2
1	80A2	3.46	1.5	2.0	2850	78.5	0.84	2.2	2.3	7.0	72	16.9	0.0011
2	80B2	4.85	2.2	3.0	2855	81.0	0.85	2.2	2.3	7.0	72	19.5	0.0018
3	90L2	6.34	3.0	4.0	2860	82.6	0.87	2.2	2.3	7.5	76	25.75	0.0024
4	100S2	8.2	4.0	5.5	2880	84.2	0.88	2.2	2.3	7.5	77	33.5	0.0070
5	100L2	11.1	5.5	7.5	2900	85.7	0.88	2.2	2.3	7.5	80	38.8	0.0080
6	112M2	14.9	7.5	10.0	2895	87.0	0.88	2.2	2.3	7.5	80	50	0.0185
7	132M2	21.2	11.0	15.0	2900	88.4	0.89	2.2	2.3	7.5	86	73.2	0.0227
8	160S2	28.6	15.0	20.0	2930	89.4	0.89	2.2	2.3	7.5	86	106	0.0500
9	160M2	34.7	18.5	25.0	2930	90.0	0.90	2.0	2.3	7.5	86	117	0.0550
10	180S2	41.0	22.0	30.0	2940	90.5	0.90	2.0	2.3	7.5	89	156	0.0620
11	180M2	55.4	30.0	40.0	2950	91.4	0.90	2.0	2.3	7.5	92	187	0.0700
12	200M2	67.9	37.0	50.0	2950	92.0	0.88	2.0	2.3	7.5	92	230	0.1400
13	200L2	82.1	45.0	60.0	2960	92.5	0.90	2.0	2.3	7.5	92	243	0.1600
14	225M2	100	55.0	75.0	2970	93.0	0.90	2.0	2.3	7.5	93	311	0.2000
15	250S2	135	75.0	100.0	2975	93.6	0.90	2.0	2.3	7.0	94	445	0.3500
16	250M2	160	90.0	125.0	2975	93.9	0.91	2.0	2.3	7.1	96	450	0.4000
17	280S2	195	110.0	150.0	2975	94.0	0.91	1.8	2.2	7.1	96	541	0.6000
18	280M2	233	132.0	180.0	2975	94.5	0.91	1.8	2.2	7.1	96	615	0.7000
19	315S2	279	160.0	220.0	2975	94.6	0.92	1.8	2.2	7.1	99	929	2.8200
20	315M2	348	200.0	270.0	2975	94.8	0.92	1.8	2.2	7.1	99	1093	3.6600
21	355S2	433	250.0	340.0	2980	95.2	0.92	1.6	2.2	7.1	103	1665	3.0000
22	355M2	545	315.0	430.0	2980	95.4	0.92	1.6	2.2	7.1	103	1790	3.5000

	Franme reference and size	Full load current at rated voltage	Rated power		Full load sreed in revolutions per minute	Efficiency	Power factor	Direct on ine ratio starting torque	Direct on line ratio pull out torque	Diect on line starting current	Mean sound pressure own peoou	Weight	Rotor inertia Wk2
NO	Type	380V	Output		Speed	EFF	P.F.	Ts	Tmax	Is	Noise	Weight	J
NO	Type	Amps(A)	KW	HP	r/min	%	Cos	Tn	Tn	In	LwdB(A)	Kg	kg·m2
1	80A4	2.85	1.1	1.5	1390	76.2	0.77	2.3	2.3	6.0	61	16.4	0.0028
2	80B4	3.72	1.5	2.0	1400	78.5	0.78	2.3	2.3	6.0	61	18.7	0.0034
3	90L4	5.1	2.2	3.0	1410	80.0	0.81	2.3	2.3	7.0	64	25.9	0.0056
4	100S4	6.8	3.0	4.0	1410	82.6	0.82	2.3	2.3	7.0	64	33.2	0.0100
5	100L4	8.8	4.0	5.5	1435	84.2	0.82	2.3	2.3	7.0	65	37.0	0.0130
6	112M4	11.7	5.5	7.5	1440	85.7	0.83	2.3	2.3	7.0	71	48.2	0.0236
7	132S4	15.6	7.5	10.0	1450	87.0	0.84	2.3	2.3	7.0	71	62	0.0227
8	132M4	22.5	11.0	15.0	1460	88.4	0.84	2.2	2.3	7.0	75	83.2	0.0349
9	160S4	30.0	15.0	20.0	1460	89.4	0.85	2.2	2.3	7.5	75	120	0.0600
10	160M4	36.3	18.5	25.0	1470	90.0	0.86	2.2	2.3	7.5	76	140	0.0650
11	180S4	43.2	22.0	30.0	1470	90.5	0.86	2.2	2.3	7.5	76	162	0.0700
12	180M4	57.6	30.0	40.0	1470	91.4	0.86	2.2	2.3	7.2	76	188	0.0800
13	200M4	70.2	37.0	50.0	1475	92.0	0.87	2.2	2.3	7.2	79	258	0.1500
14	200L4	84.9	45.0	60.0	1475	92.5	0.87	2.2	2.3	7.2	81	272	0.1800
15	225M4	103	55.0	75.0	1480	93.0	0.87	2.2	2.3	7.2	81	335	0.2000
16	250S4	138.3	75.0	100.0	1480	93.6	0.88	2.2	2.3	6.8	83	435	0.3500
17	250M4	165.5	90.0	125.0	1480	93.9	0.88	2.2	2.3	6.8	86	464	0.4000
18	280S4	201	110.0	150.0	1480	94.5	0.88	2.1	2.2	6.9	86	602	0.6000
19	280M4	240	132.0	180.0	1480	94.8	0.88	2.1	2.2	6.9	93	697	0.7000
20	315S4	288	160.0	220.0	1480	94.9	0.89	2.1	2.2	6.9	93	974	2.7000
21	315M4	360	200.0	270.0	1480	94.9	0.89	2.1	2.2	6.9	97	1150	4.8200
22	355S4	443	250.0	340.0	1490	95.2	0.90	2.1	2.2	6.9	101	1678	6.5000
23	355M4	559	315.0	430.0	1490	95.2	0.90	2.1	2.2	6.9	101	1813	8.2000

	Franme reference and size	Full load current at rated voltage	Rated power		Full load sreed in revolutions per minute	Efficiency	Power factor	Direct on ine ratio starting torque	Direct on line ratio pull out torque	Diect on line starting current	Mean sound pressure own peoou	Weight	Rotor inertia Wk2
NO	Type	380V	Output		Speed	EFF	P.F.	Ts	Tmax	Is	Noise	Weight	J
NO	Type	Amps(A)	KW	HP	r/min	%	Cos	Tn	Tn	In	LwdB(A)	Kg	kg·m2
1	80A6	2.3	0.75	1.0	905	69.0	0.72	2.0	2.1	5.3	57	16.7	0.0035
2	80B6	3.2	1.1	1.5	905	72.0	0.73	2.0	2.1	5.5	57	18.7	0.0048
3	90L6	4.0	1.5	2.0	920	76.0	0.75	2.0	2.1	5.5	61	24.6	0.0066
4	100L6	5.6	2.2	3.0	935	79.0	0.76	2.0	2.1	6.5	65	35.1	0.0200
5	112MA6	7.4	3.0	4.0	960	81.0	0.76	2.1	2.1	6.5	69	43.9	0.0380
6	112MB6	9.75	4.0	5.5	960	82.0	0.76	2.1	2.1	6.5	69	49.7	0.0425
7	132S6	12.9	5.5	7.5	960	84.0	0.77	2.1	2.1	6.5	65	56.0	0.0500
8	132M6	17.2	7.5	10.0	970	86.0	0.77	2.0	2.1	6.5	84	61.0	0.0597
9	160S6	24.5	11.0	15.0	970	87.5	0.78	2.0	2.1	6.5	73	116	0.0700
10	160M6	31.6	15.0	20.0	970	89.0	0.81	2.0	2.1	7.0	73	141	0.0750
11	180M6	38.6	18.5	25.0	980	90.0	0.81	2.1	2.1	7.0	76	169	0.0900
12	200M6	44.7	22.0	30.0	980	90.0	0.83	2.0	2.1	7.0	76	221	0.2000
13	200L6	59.3	30.0	40.0	980	91.5	0.84	2.0	2.1	7.0	76	254	0.2500
14	225M6	71.0	37.0	50.0	980	92.0	0.86	2.1	2.1	7.0	78	300	0.8250
15	250S6	86.0	45.0	60.0	980	92.5	0.86	2.1	2.0	7.0	80	393	1.2800
16	250M6	104	55.0	75.0	980	92.8	0.86	2.1	2.0	7.0	80	423	1.4800
17	280S6	142	75.0	100.0	985	93.5	0.86	2.0	2.0	6.7	85	568	2.6300
18	280M6	169	90.0	125.0	985	93.8	0.86	2.0	2.0	6.7	85	658	3.3300
19	315S6	207	110.0	150.0	985	94.0	0.86	2.0	2.0	6.7	85	988	3.6000
20	315M6	245	132.0	180.0	985	94.2	0.87	2.0	2.0	6.7	85	1070	6.0000
21	355S6	292	160.0	220.0	990	94.5	0.88	1.9	2.0	6.7	92	1575	9.5000
22	355MA6	365	200.0	270.0	990	94.5	0.88	1.9	2.0	6.7	92	1675	10.4000
23	355MB6	457	250.0	340.0	990	94.5	0.88	1.9	2.0	6.7	92	1868	12.4000

	Franme reference and size	Full load current at rated voltage	Rated power		Full load sreed in revolutions per minute	Efficiency	Power factor	Direct on ine ratio starting torque	Direct on line ratio pull out torque	Diect on line starting current	Mean sound pressure own peoou	Weight	Rotor inertia Wk2
NO	Type	380V	Output		Speed	EFF	P.F.	Ts	Tmax	Is	Noise	Weight	J
NO	Type	Amps(A)	KW	HP	r/min	%	Cos	Tn	Tn	In	LwdB(A)	Kg	kg·m2
2	80A8	1.49	0.37	0.50	675	62.0	0.61	1.8	1.9	4.0	56	15.0	0.0030
3	80B8	2.17	0.55	0.75	680	63.0	0.61	1.8	2.0	4.0	56	18.0	0.0038
4	90LA8	2.43	0.75	1.0	680	70.0	0.67	1.8	2.0	4.0	59	23.0	0.0063
5	90LB8	3.36	1.1	1.5	680	72.0	0.69	1.8	2.0	5.0	59	26.1	0.0090
6	100L8	4.40	1.5	2.0	690	74.0	0.70	1.8	2.0	5.0	61	37.3	0.0123
7	112MA8	6.0	2.2	3.0	710	79.0	0.71	1.8	2.0	6.0	64	43.2	0.0221
8	112MB8	7.80	3.0	4.0	710	80.0	0.73	1.8	2.0	6.0	64	49.3	0.0288
9	132S8	10.3	4.0	5.5	720	81.0	0.73	1.9	2.0	6.0	68	69	0.0690
10	132M8	13.6	5.5	7.5	720	83.0	0.74	1.9	2.0	6.0	68	83	0.0935
11	160S8	17.8	7.5	10.0	720	85.5	0.75	1.9	2.0	6.0	68	120	0.0800
12	160M8	25.5	11.0	15.0	730	87.5	0.75	2.0	2.0	6.5	70	148	0.0850
13	180M8	34.1	15.0	20.0	730	88.0	0.76	2.0	2.0	6.6	73	172	0.1000
14	200M8	41.1	18.5	25.0	730	90.0	0.76	1.9	2.0	6.6	73	234	0.3000
15	200L8	48.9	22.0	30.0	730	90.5	0.78	1.9	2.0	6.6	73	242	0.3500
16	225M8	63.0	30.0	40.0	735	91.0	0.79	1.9	2.0	6.5	75	313	0.8250
17	250S8	78.0	37.0	50.0	740	91.5	0.79	1.9	2.0	6.6	76	415	1.3500
18	250M8	94.0	45.0	60.0	740	92.0	0.79	1.9	2.0	6.6	76	458	1.5500
19	280S8	111.0	55.0	75.0	740	92.8	0.81	1.8	2.0	6.6	82	562	2.6300
20	280M8	150	75.0	100.0	740	93.5	0.81	1.8	2.0	6.2	82	700	3.3300
21	315S8	178.0	90.0	125.0	740	93.8	0.82	1.8	2.0	6.4	82	927	3.6000
22	315M8	217	110.0	150.0	740	94.0	0.82	1.8	2.0	6.4	82	1075	6.0000
23	355S8	261.0	132.0	180.0	740	93.7	0.82	1.8	2.0	6.4	90	1574	7.9000
24	355MA8	315.0	160.0	220.0	740	94.2	0.82	1.8	2.0	6.4	90	1675	10.3000
25	355MB8	387.0	200.0	270.0	740	94.5	0.83	1.8	2.0	6.4	90	1841	12.3000

Keyword:

GOST

Categories:

GOST SERIES

SAF Coolest v1.3.1.1 设置面板RXOSX-AUNV-ISZAE-XAE

图片ALT信息： GUANGLU

违禁词：第一，最，一流，领先，独一无二，王者，龙头，领导者，极致，

无数据提示

Sorry, the current column is being updated, please stay tuned!

You can view other columns or return to the HOME

GOST

SAF Coolest v1.3.1.1 设置面板RXOSX-AUNV-ISZAE-XAE

无数据提示

V1.3.1 SVG图标库请自行添加图标，用div包起来，并命名使用
